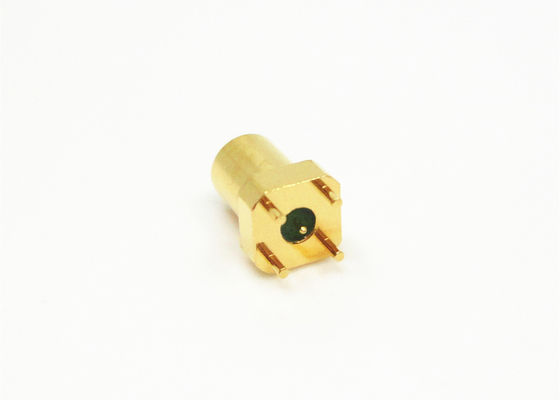

| Product Name: | SSMP Connector, SMPM, Mini SMP | Gender: | Male |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Model: | SSMP(M)-JHD20-S | Other Names: | Mini SMP, SMPM |
| High Light: | smpm coaxial connector,small coax connectors |
||
SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole. Apply for the install situation with the requirement of high reliability modular intensive.Typical applications include third generation Telecommunication systems
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
Material & Mechanical Characteristics:
Center Conductor:
Male: Sn-P Bronze/Kovar, Gold plated
Female: Beryllium bronze, Gold plated
Elastic Contact:Beryllium bronze Gold plated
Body and other Metal Parts: Brass/Kovar Gold plated
Product Drawing:
Gold offers the following main advantages:
-- Excellent wettability/solderability
-- Excellent protection against corrosion
-- Low contact resistance
-- Good wear resistance
Features:
- Higher frequency range to 50GHz
- SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connectors can be widely used in telecom.
- SMPM series includes PC-mount, straight and right-angled, .047 cabled connectors, and sealable flange-mounts.
- All male connectors are offered as full-detent or smooth bore designs for your preference of separation forces.
Certificate:
Application:
*Aerospace
*Board-to-board interconnect
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications
