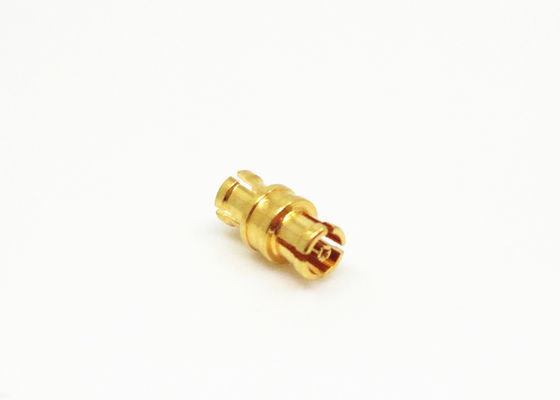

SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification

SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification
SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification

Large Image :  SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SSMP-KK22
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Goods in stock:2000pcs
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Name: SSMP Connector Gender: Male
Material: Brass Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~50GHz
Rated Voltage: 170VRMS* Model: SSMP-KK22
High Light:

smpm coaxial connector

,

small coax connectors

SMPM High Quality SSMP Straight Female to Female RF Coaxial Adapter Connector​



SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting,and the plug has two interface form with full detent and unthreaded hole.



SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification 0                  SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification 1


Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor Normal≤3.5mΩ, Sealing≤5mΩ
Center conductor Normal≤8mΩ, Sealing≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5
Material & Mechanical Characteristics
Center Conductor Male Sn-P Bronze/Kovar, Gold plated
Female Beryllium bronze, Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts

Brass/Kovar Gold plated

Stainless steel Passivation

Insulators Glass sintering/PTFE/PEI
Hermetic Product Leakage Rate ≤1.01325×10-3Pa·cm3/s



Features:

• SMPM (SSMP ) is a kinds of connector with small volume(compared with Mini SMP), light weight, wide working broadband advantages

• 35% smaller size than the SMP connectors, which can be used in many field

• The performance up to 50 GHz

• Allows for axial and radial misalignment (blind mate applications)

• SMPM with excellent reliability where extreme shock & vibration conditions are experienced



Product Drawing :



SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification 2



NOTE: L=5.1mm





Application:



* Network

* Satcom

* Automotive

* Jump line join

* Basic facility

* Radar,microwave

* Computer/LANs





Advantages:

SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification 3

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),

√ More than 500 experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 15 year
√ Have long and rich cooperation experience with national project components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
√ Competitive price
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ Monthly average turnover is 10million
√ Custom-made (ODM) orders welcome here
√ We are committed to providing high-quality products to customers



Factory& Production Line:



SMPM Coaxial Cable Connectors SSMP Straight Female To Female ROHS Certification 4



Note:


We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
