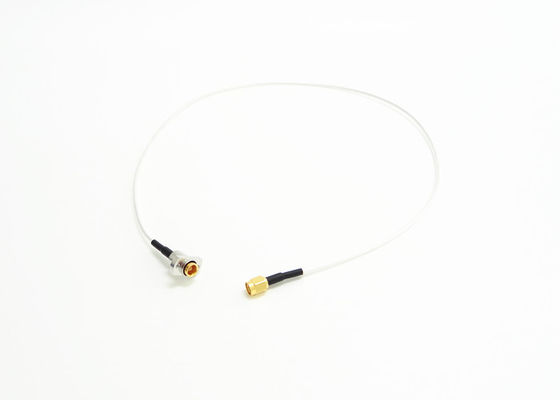

Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material

Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material
Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material

Large Image :  Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMA-C-J1.5/BMA-C-KF1.5
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 pcs Per Month
Detailed Product Description
Product Name: SMA/BMA Cable Assembly Plating: Au Plated
Impedance: 50Ω Certificate: CE ROHS
Application: Electronic,RF,Industrial And Automotive Material: Copper
Sample: Avaiable
High Light:

coaxial cable assemblies

,

custom rf cable assemblies

CE ROHS SMA Male to BMA Male RF Cable Assemblies Wire Harness Assembly



Xi'an Elite Electronic of RF cable assemblies features outstanding electrical performance, low loss and high frequency. The range includes flexible, semi-rigid, corrugated and hand-formable cable assemblies with a combination of RF cables and connectors optimized for each market or application. Custom RF cable assemblies are also available.



This is flex cable assembly, with the characteristics of light weight, low loss,good mechanical phase stability, the phase change of the cable varies with the temperature is small, apply to the occasion with strict temperature variation and phase. It’s mainly used in avionics, phased array radar, microwave RF device.



Specifiacation:

Electrical Characteristics
Frequency Range 0~3GHz
VSWR ≤1.3
Characteristic Impedance 50ohm
Dielectric Withstanding Voltage ≥1500VRMS,50Hz, at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center conductor ≤1.5mΩ
Outer conductor ≤0.2mΩ
Material & Mechanical Characteristics
Body

Brass                            CuZnSn/Ni Plated

Temperature Range -40-+85℃
Center conductor

Brass                            Au Plated

Beryllium-copper          Au Plated

Durability Mating cycles ≥500
Insulator PTFE



Application:

* Computer/LANs

* Phased array radar

* Instrumentation

* Radar,microwave

* Telecommunications

* Instrumentation



Industral:



-Aerospace

-Defense

-Rail

-Medical

-Space

-Telecom

-Industrial

-Test & Measurement



Detailed Drawing

Wire Harness RF Cable Assemblies SMA Male To BMA Male Copper Material 0

Purchasing of ready-made microwave cable assembly lines provides important benefits:


• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality



Assembly shop capability:



*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking



Advantages:

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.)

√ Specializes in manufacturing RF connector more than 16 yearS

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers

√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9

√ With our own factory with 35,000㎡

√ Competitive price



Product Cataloge:

RF Adapter
MCX/MMCX RF Connector
SMP/SSMP RF Connector
TNC RF Connector
Glass-to-metal Hermetic Seals
J30J Series Connector
Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide To Coaxial Adapter
SMA/SSMA RF Connector
N Type RF Connector
Microwave Rotary Joints





Packaging & Delivery:

* Standard Export Carton
* According to customers' requirements



NOTE:
We have over 10,000 types of Cable Assemblies, if the connector you are using is not found, please contact us with your detai
ls.
