| Product Name: | N Type Cable Assembly | Plating: | Au Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Model: | RF Cable Assembly | Application: | Electronic,RF,Industrial And Automotive |
| Material: | Copper | Sample: | Avaiable |
| High Light: | coaxial cable assemblies,custom rf cable assemblies |
||

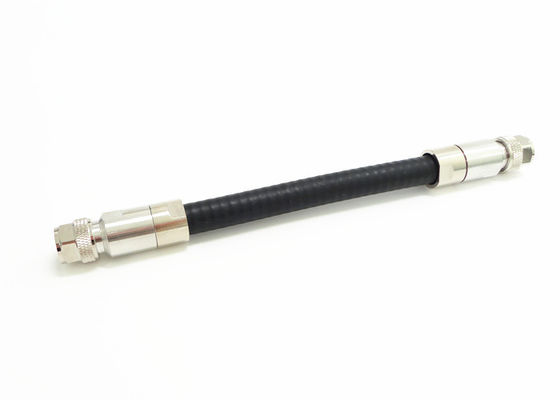

N Male Straight to N Male Straight RF Cable Assemblies Using 1/2 Cable RoHS
Xi'an Elite Electronic of RF cable assemblies features outstanding electrical performance, low loss and high frequency. The range includes flexible, semi-rigid, corrugated and hand-formable cable assemblies with a combination of RF cables and connectors optimized for each market or application. Custom RF cable assemblies are also available.
The cable assembly with the characteristics of light weight, low loss,good mechanical phase stability, the phase change of the cable varies with the temperature is small, apply to the occasion with strict temperature variation and phase. It’s mainly used in avionics, phased array radar, microwave RF device.
Specifiacation:
| Electrical Characteristics | ||
| Frequency Range | 0~3GHz | |
| VSWR | ≤1.3 | |
| Characteristic Impedance | 50ohm | |
| Dielectric Withstanding Voltage | ≥1500VRMS,50Hz, at sea level | |
| Dielectric Resistance | ≥5000MΩ | |
| Contact Resistance | Center conductor | ≤1.5mΩ |
| Outer conductor | ≤0.2mΩ | |
| Material & Mechanical Characteristics | ||
| Body |
Brass CuZnSn/Ni Plated |
|
| Temperature Range | -40-+85℃ | |
| Center conductor |
Brass Au Plated Beryllium-copper Au Plated |
|
| Durability | Mating cycles ≥500 | |
| Insulator | PTFE | |
Application:
* Computer/LANs
* Outdoor facilities
* Basic facility
* Radar,microwave
* Telecommunications
* Instrumentation
Industral:
-Aerospace
-Defense
-Rail
-Medical
-Space
-Telecom
-Industrial
-Test & Measurement
Detailed Drawing
Purchasing of ready-made microwave cable assembly lines provides important benefits:
• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality
Assembly shop capability:
*Automatic stripping
*Automatic laser stripping
*Temperature controlled soldering
*Clean room
*Laser marking
Advantages:
√ Rich selection of connector (BNC,TNC,MCX,SMA,SMB,SSMB,SMP,SSMP ect.),
√ More than 500 experienced workers with over 10 production line
√ Specializes in manufacturing RF connector more than 16 yearS
√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
√ We are committed to providing high-quality products to customers
√ Have long and Rich cooperation experience with national project components supply like China ShenZhou 9
√ With our own factory with 35,000㎡
Product Cataloge:
| RF Adapter |
| MCX/MMCX RF Connector |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide To Coaxial Adapter |
| SMA/SSMA RF Connector |
| N Type RF Connector |
| Microwave Rotary Joints |
* Standard Export Carton
* According to customers' requirements
NOTE:
We have over 10,000 types of Cable Assemblies, if the connector you are using is not found, please contact us with your details.
Contact Person: Elite
Tel: +8613609167652
