MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance

MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance
MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance

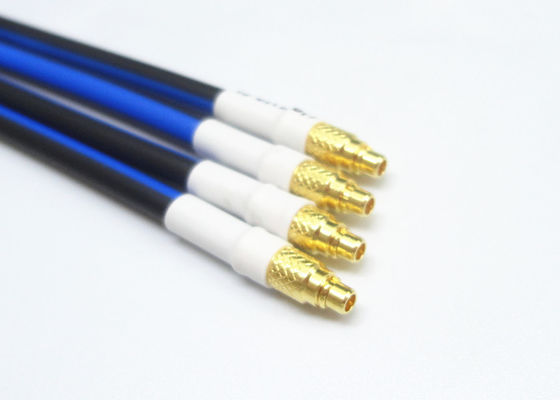

Large Image :  MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: MMCX-JW316D/MMCX-J3D-215
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: * Standard Export Carton * According to customers' requirements
Delivery Time: 5-8 work days
Payment Terms: T/T, Western Union, L/C
Detailed Product Description
Product Name: RF Cable Assembly Plating: Gold Plated/ Nickel Plated
Impedance: 50Ω Cable Type: RG316
Model: MMCX Certificate: CE ROHS
Monting Type: Crimp
High Light:

coaxial cable assemblies

,

custom rf cable assemblies

MMCX Male Right Angle to MMCX Male RF Cable Assembly EF316D



This mmcx cable Assembly is combine with our company self-made precision connector connect HUBER+SUHNER flexible soft cable connectors, with characteristics of wide bandwidth,low loss, good homogeneity, It’s mainly used in avionics, phased array radar, microwave RF device.





Specifiacation:



Electrical Characteristics
Characteristic Impedance 50ohm
Frequency Range 0~3GHz
VSWR ≤1.2
Dielectric Withstanding Voltage ≥1500VRMS,50Hz, at sea level
Dielectric Resistance ≥5000MΩ
Contact Resistance Center conductor ≤3mΩ
Outer conductor ≤2.5mΩ
Material & Mechanical Characteristics
Body Brass Ni Plated
Insulator PTFE
Center conductor Phosphor Bronze Au Plated
Durability Mating cycles ≥500
Temperature Range -40-+165℃
Suitable for cable RG316





Application:



* Base Station

* Computer/LANs

* Instrumentation

* Outdoor facilities

* Radar,microwave

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Mobile communication

* Microwave RF device



MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance 0

Detailed Drawing

MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance 1

MMCX Male to Male RF Cable Assemblies with Cable Type EF316D Diameter=0.54mm 50Ω Impedance 2

Purchasing of ready-made microwave cable assembly lines provides important benefits:


• Perfect assembly, no rejects
• No need for training assembly personnel
• No capital investment for assembly provisions
• Precisely matched cables and connectors from
the same manufacturer
• Xi'an Elite Electronic guaranties quality



Assembly shop capability:



*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking



Product Cataloge:

RF Adapter
RF Cable Assemblies
TNC RF Connector
J30J Series Connector
Microwave Rotary Joints
N Type RF Connector
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
BNC RF ConnectorMillimeter

Packaging & Delivery:
* According to customers' requirements
* Standard Export Carton











NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
ls.

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8618437926277

Send your inquiry directly to us
