Product Details:
Payment & Shipping Terms:
|
| Product: | Integrated Connector | Frequency: | DC-12.4Ghz |
|---|---|---|---|
| Certificate: | CE ROHS | Material: | Zinc Alloy / Brass |
| Rated Current: | 5A | Application: | RF, Base Station/ Radios /Satcom/Telecom |
| Highlight: | mini rf connector,rf coaxial connector |
||

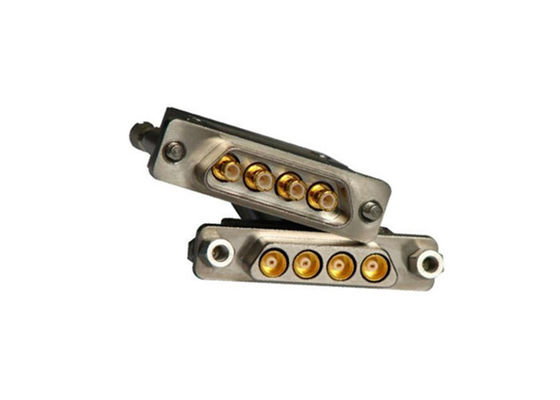

Salt-spray Resistance Integrated Connector RF High & Low Frequency
Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.
Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.
Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.
| Frequency Range | DC-12.4Ghz |
| High Frequency | 2 pins |
| Low Frequency | 2 pins |
| VSWR | ≤1.3 |
| Cable Type | 0.086, .141 |
| Rated Current | 5A |
| Voltage Resistance | 500V |
| Insulation Resistance | 5000MΩ |
| Custom Size | Available |
Detailed Drawing
Product List
| J26M Series |
| J31B Series |
| J41B Series |
| J45P Series |
| Y27 Series |
| Y36 Series |
