Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized

Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized
Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized

Large Image :  Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: MCX
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: L/C, T/T, Western Union
Supply Ability: 350000pcs/years
Detailed Product Description
Product Name: MCX RF Conector Plating: Gold Plated
Impedance: 50Ω Durability: 500 Cycles
Contact Material: Brass, BeCu Material: Bass,stainless Steel
Design Standard:: IEC 60169-17 Type: Straight
High Light:

mcx cable connector

,

soldering crimp connectors

Hight Quality MCX Male Crimp Straight for RG316 RG179 RG174 rf Connector



Type MCX RF Connector is a kind of miniature Connectors with snap-on Coupling. Characteristic impedance has two types: 50 and 70. The characteristic of connectors is in small volume,light weight,concise structure, easy to use. They are widely used in the Global position system, Digital personal computer net work, all kinds of radio instrument, small-sized electronic equipment and WLAN system.



MCX RF coaxial connector is apply to the equipment which have the requirement of weight and volume, the operation frequency can reach 66GHz, use plug-in design, the interface size is similar with SMB, but the volume is approximately 30% smaller, contact is more reliable, connect is faster, which can meet the requirement of digital communication intensively and miniaturized.



Applications of the MCX connectors are those where size, weight, performance and ease of assembly are the driving considerations to the final design decision. Typically, these include GPS, wireless communications (WLAN and mobile) and automotive.

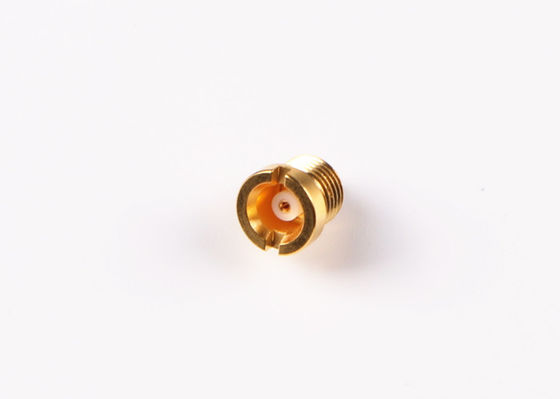

Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized 0

Specification:



Electrical Characteristics
Impedance 50 Ohm
Frequency Range DC~6GHz
Rated Voltage 250 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 750 VRMS (Maximum sea-level)
Insulation Resistance >=2000MOhm
Contact Resistance Outer conductor <=2.5mOhm
Center conductor <=5.0mOhm
VSMR <=1.3



Material & Mechanical Characteristics
Center Conductor Male/Plug Brass Gold plated
Female/Socket Sn-P bronze Gold plated
Resilience Contact Beryllium bronze Nickel Plated
Shell / Housing Brass,stainless steel Nickel Plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles



RoHS Compliant Yes
Centre Contact Termination Crimp
Outer Contact Termination Crimp
Mating Cycles 500Cycles
Contact Retention 10N min
Cable Retention 100N min
Mating Force 13.6N max
Un-Coupling Force 13.6N max


Environmental Specification:


Operating Temperature -30 to +70 Deg C
IP Rating ( Mated ) IP64


Features:



1, Broadband performance with low reflection DC tp 6 GHz
2, Quick connect/disconnect snap-on mating reduces installation time
3, Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
4, MCX connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.


Application:

  • Wireless industries
  • Communication equipment
  • Measurement equipment
  • Antennas
  • Base stations
  • Telecom
  • Computers
  • Networks
  • Instrumentation
  • Test and measurement
  • High-speed cable modems
  • Satcom
  • PC/LAN
  • Automotive(GPS)
  • Broadcast

Male Crimp Straight MCX Bulkhead Connector Gold Plated Plating Small Sized 1



NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
