| Product Name: | SSMA Male Connector | Material: | Brass |
|---|---|---|---|
| Type: | Right Angle | Gender: | Male |
| Palting: | Gold Plated | Impedance: | 50Ohm |
| Durability (matings): | 500cycles | Weight: | About 80~150g |
| High Light: | din coax connector,coaxial cable connectors |
||
SSMA Male Right Angle RF Coax Connector for CXN3507/MF363A
The SSMA Series RF coaxial connector is a more compact version of the SMA connector. It is distinguished by its small size, broad frequency range, and high dependability. This connector is extensively employed in sectors such as aviation, aerospace, and microwave communications.

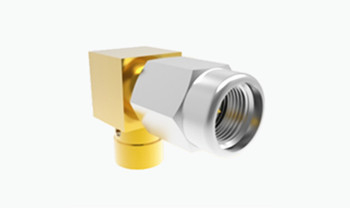

Product Drawing of SSMA Male Right Angle RF Coax Connector for CXN3507/MF363A:
Electrical Characteristics
Note:The specific data of the model are based on the data in the product specification sheet.
| Electronic and Material Characterials | ||
| Impedance | 50Ω | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750 VRMS (Maximum sea-level) | |
| VSWR | ≤1.3 | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Sn-P Bronze Gold plated |
| Female | Beryllium copper Gold plated | |
| Shell and other metal parts | Brass Beryllium copper Gold plated | |
| Stainless steel passivated | ||
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
| Mating torque | 0.5 -0.7N.m | |
Product Features:
1. Miniaturized Size: SSMA connectors are more compact than the standard SMA connectors, making them suitable for applications where space is at a premium.
2. Broad Frequency Range: SSMA connectors can handle a wide frequency range, typically supporting signals up to 18 GHz or even higher.
3. High Reliability: These connectors are designed to provide consistent and reliable performance in demanding environments such as aerospace applications.
Application:
1. Wireless Communications: In wireless infrastructure equipment such as base stations and wireless access points, SSMA connectors are used to link antennas with transceivers.
2. Satellite Communications: They are employed in ground stations for satellite uplink and downlink, connecting satellite communication equipment with antenna systems.
3. Test Equipment: In RF (Radio Frequency) and microwave test equipment, SSMA connectors are used for the transmission of high-frequency signals to ensure measurement accuracy and repeatability.
Product Cataloge:
| RF Adapter |
| SMA RF Connector |
| SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
NOTE:
We can supply over 1000 types of RF connectors, if it is not match with your request,pls contact us.
