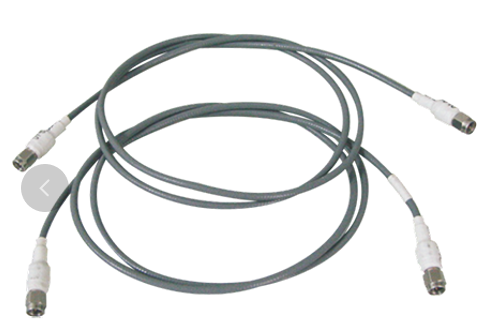

CXN3449/MF503A RF Coaxial Cable Assembly Phase Stable Flexible Coaxial Cable Assemblies with Low Insertion Loss up to 40GHz

Product Description:

The RF Cable Assembly is a high-performance RF coaxial cable assembly designed to meet the demanding requirements of modern communication systems. Featuring a durable SMA Female connector at one end, this assembly ensures reliable and secure connections in a variety of RF applications. The SMA Female connector is known for its excellent mechanical stability and superior electrical performance, making this cable assembly an ideal choice for both commercial and industrial use.

Constructed with precision and quality materials, the RF Cable Assembly offers an insulation resistance of ≥5000MΩ, providing exceptional electrical isolation and minimizing signal loss. This high insulation resistance ensures that the cable assembly maintains signal integrity even in challenging environments, making it suitable for sensitive and high-frequency signal transmissions.

One of the standout features of this product is its availability in custom lengths, including 100mm, 200mm, 300mm, 500mm, and 1000mm. This range of length options allows users to select the perfect cable size for their specific needs, reducing excess cable clutter and improving system organization. Whether you require a short jumper cable or a longer connection, this RF Cable Assembly can be tailored to fit your installation requirements precisely.

The RF Cable Assembly supports a wide frequency range from DC up to 40GHz. This broad frequency range makes it suitable for a diverse array of applications, including wireless communications, test and measurement equipment, radar systems, and satellite communications. The ability to operate effectively across such a wide frequency spectrum highlights the versatility and robustness of this cable assembly.

Technical Parameters:

Applications:

The ELT RF Cable Assembly, is a highly reliable and versatile solution designed for various applications and scenarios in the telecommunications, electronics, and industrial sectors. Manufactured in China and certified under ISO9001 and ISO14001 standards, this product guarantees superior quality and environmental compliance, making it an ideal choice for professional use.

ELT cable assemblies, offering excellent performance with an impedance of 50Ω. ensures secure and stable connections, suitable for sensitive signal transmission in radio frequency (RF) systems. These cable assemblies are especially favored in applications requiring durability and frequent mating cycles, as they endure over 500 mating cycles without degradation, providing long-lasting service even in demanding environments.

Customization:

ELT presents the RF Cable Assembly, a high performance cable assembly designed to meet your precise requirements. Manufactured in China and certified with ISO9001 and ISO14001, this product guarantees quality and reliability.

We offer custom length options including 100mm, 200mm, 300mm, 500mm, and 1000mm to suit your specific needs. Each assembly provides an insulation resistance of ≥5000MΩ, ensuring excellent performance in various environments. Choose ELT's RF Cable Assembly for a reliable, customizable, and high performance cable assembly solution.

Packing & Shipping:

The RF Cable Assembly is carefully packaged to ensure maximum protection during transit. Each assembly is individually wrapped in anti-static material to prevent any electrostatic discharge damage. The wrapped product is then placed in a sturdy, corrugated cardboard box with foam padding to absorb shocks and vibrations.

For shipping, the packaged RF Cable Assemblies are sealed securely and labeled with handling instructions to ensure safe delivery. We use reliable courier services that provide tracking and timely delivery to ensure your product arrives in perfect condition.

Bulk orders are packaged in reinforced cartons with additional cushioning to prevent any movement or damage during shipment. Custom packaging options are available upon request to meet specific shipping or branding requirements.
