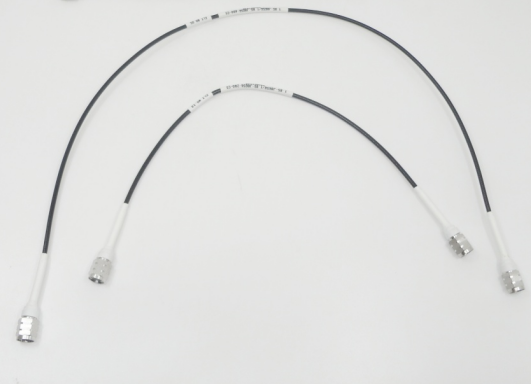

High Frequency SMA/2.92mm to Mini SMA/MSSM Male Connector Cable Assemblies Up To 40 GHz Mating Cable CXN3506
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 2.92 Male To MSSM Male Cable Assemblies | Center Contact Of Connector: | Copper Alloy， Gold Plated |
|---|---|---|---|
| Shell Of Connector: | Stainless Steel, Passivation | Rated Voltage: | 500V |
| Insulation Resistance: | 5000Ohm | Frequency: | DC~40GHz |
| Temperature Range: | -55℃~+125℃ | Mating Cable: | MF108A |
| Highlight: | High Frequency SMA to Mini SMA cable,2.92mm to MSSM male connector,40 GHz RF cable assembly |
||
Product Description:
For higher frequency sma we choose the alternative connector 2.92mm RF Coaxial Connector, For high frequency mini sma we choose our alternative connector MSSM
The MSSM Series connector is a high-performance mmWave connection, with a frequency of up to 40 Ghz, is threaded with an air interface interchangeable with SSMA Series connectors, please check our attached products informaiton. K type, also known as 2.92mm connector, is a commonly used millimeter wave connector. The frequency of use can up to 40GHz. With air interface, it can be interchanged with SMA series and 3.5mm connectors. Because our 3.5mm/2.92mm connector and SMA connector have the same thread dimension of 1/4-36 UNS, so they are fully compatible and interchangeable. It has the advantages of small size, light weight, high frequency of use and reliable connection.
Elite Electronics Hot Selling RF Cable Assemblies
SMA series /SSMA series /K (2.92mm) series/ SMP series /SMPM series/ASMP series/CSMP (SMPS) series/ N series /TNC series/TNCA series connectors.
The above connectors we all have cable connectors mating the cable frequency from 3GHz ~ 40GHz. The calbe length we can arrange the customization. The MOQ: 30pcs.
Product Details of 2.92mm Male to MSSM Male RF Coaxial Cable Assembly with Different Length:
| Technical | Materials & Finish | ||
| Impedance | / | Center Conductor of Connector | Copper Alloy, Gold Plating |
| DWV | 500V | Outer Conductor of Connector | Stainless Steel, Passivation |
| Insulation Resistance | ≥5000MΩ | Mating Cable | MF108A, CNX3506 |
| Temperature | Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃ | ||
| Other Index | Frequency Range: 0.3MHz~40GHz | ||
Outline Dimension of Stainless Steel 2.92mm Male Cable Connectors Model: K-J506G
Outline Dimension of MSSM Male Cable Connector:
2.92mm male to MSSM male RF Cable Assemblies up to 40Ghz, 30GHz
Applications:
Elite Electronic cable assemblies are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
Packing and Shipping:
Packaging:
The 2.92 male to mssm male calbe assemblies are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
Shipping:
We offer fast and reliable shipping for the cable assemblies. After shipping, you will receive a tracking No of your shipment.
