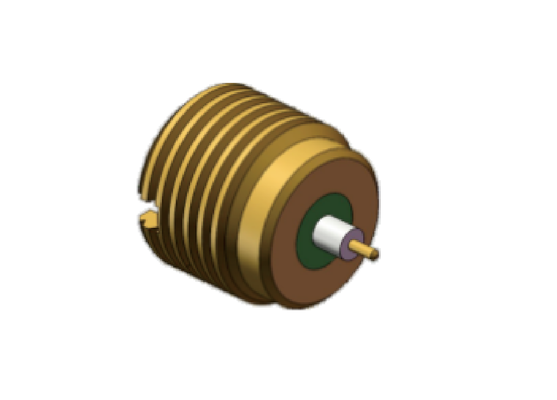

50 Ohm Kovar alloy Hermetic SMP RF Connector Male Bulkhead Smooth Bore 40GHz with Screw M5X0.5-6g

Large Image : 50 Ohm Kovar alloy Hermetic SMP RF Connector Male Bulkhead Smooth Bore 40GHz with Screw M5X0.5-6g Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SMP(M)-JYD10-F

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10bags/carton
Delivery Time:	6-8weeks for new production
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMP RF Connector	Frequency:	DC~40GHz
Shell:	Kovar Alloy， Gold Plated	Center Contact:	Kovar Alloy， Gold Plated
Insulation Resistance:	5000 Ohm	DWV:	500V
Rated Voltage:	170V	Imdepence:	50Ω
Temperature Range:	-55℃~+125℃	Dielectric:	Glass
Gender:	Male Plug	Mounting:	Bulkhead Mount, Screw M5X0.5-6g
Interface:	Full Detent
Highlight:	50 Ohm SMP RF Connector Male , Kovar alloy Hermetic SMP Connector , SMP RF Connector with M5X0.5 screw

Product Description:

SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 40GHz 50 Ohm

Elite Electronics high-performance SMP radio frequency connectors deliver outstanding signal integrity performance across frequencies reaching 40GHz. Featuring an exclusive tool-free push-pull mating design, these SMP connectors cut assembly cycle time greatly without requiring cumbersome torque wrenches during installation.

We supply multiple structural variants including straight, right-angle and flange-mounted types, alongside three distinct male plug styles: Full Detent, Limited Detent and Smooth Bore. Customers can flexibly adjust holding force and layout compactness to perfectly match unique high-frequency microwave and millimeter-wave application demands.

Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.

Outline Dimension of SMP RF Connector male bulkhead connector, Model : SMP(M)-JYD82-S

50 Ohm Kovar alloy Hermetic SMP RF Connector Male Bulkhead Smooth Bore 40GHz with Screw M5X0.5-6g 0

Model No	Interface	Hermeticaly sealed, Engagement Depth: 2.79mm
SMP(M)-JYD10	Limited Detent	Hermeticaly sealed, Engagement Depth: 2.79mm
SMP(M)-JYD10-S	Smoth Bore	Hermeticaly sealed, Engagement Depth: 2.79mm
SMP(M)-JYD10-F	Full Detent	Hermeticaly sealed, Engagement Depth: 2.79mm
SMP(M)-JYD10G	Limited Detent	Hermeticaly sealed, Engagement Depth: 2.79mm

Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
50 Ohm Kovar alloy Hermetic SMP RF Connector Male Bulkhead Smooth Bore 40GHz with Screw M5X0.5-6g 1

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm

Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

50 Ohm Kovar alloy Hermetic SMP RF Connector Male Bulkhead Smooth Bore 40GHz with Screw M5X0.5-6g 2
