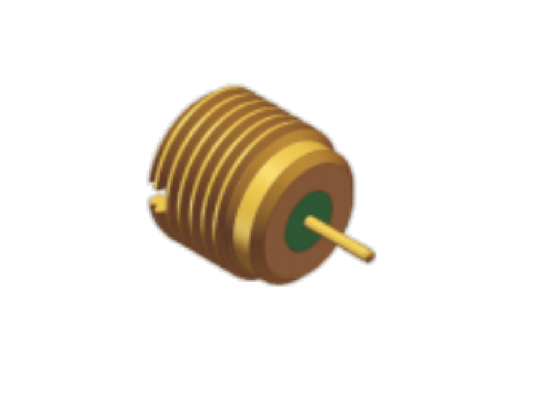

50 Ohm Gold Plated Hermetic Glass Sealing SMP RF Connector Male Bulkhead Smooth Bore 40GHz
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMP RF Connector | Frequency: | DC~18GHz |
|---|---|---|---|
| Center Contact: | Kavar Alloy， Gold Plated | Shell: | Kavar Alloy， Gold Plated |
| DWV: | 500V | Insulation Resistance: | 5000 Ohm |
| Rated Voltage: | 170V | Temperature Range: | -55℃~+125℃ |
| Imdepence: | 50Ω | Pin OD: | 0.3mm, 0.45mm, 0.5mm, 0.7mm, 0.9mm, 1.3mm Available |
| Dielectric: | Glass | Interface: | Smooth Bore |
| Mounting: | Bulkhead Mount | Gender: | Male Plug |
| Highlight: | 50 Ohm SMP RF connector male bulkhead,gold plated hermetic SMP connector,40GHz smooth bore RF connector |
||
Product Description:
SMP RF Connector Male Bulkhead Full Detent Limited Detent Smooth Bore 40GHz 50 Ohm
Elite Electronics SMP RF connectors operate up to 40 GHz and deliver outstanding signal integrity throughout the full frequency range, featuring low high-frequency loss and distortion-free stable signal transmission. Equipped with our self-developed tool-free push-on mating interface, the connectors allow quick plug-and-play assembly without bulky torque wrenches, drastically cutting production cycle time and boosting mass manufacturing efficiency.
A complete range of configurations is available, including straight, right-angle and flange-mount versions. Three male plug designs are offered: Full Detent, Limited Detent and Smooth Bore. Customers can select models according to equipment layout and required locking strength to flexibly balance retention force and wiring integration density. These connectors are ideal for precision high-frequency applications such as microwave test instruments, millimeter-wave modules and compact RF equipment.
Force Comparison: Insertion and extraction force follows the hierarchy: Full Detent > Limited Detent > Smooth Bore.
Outline Dimension of SMP RF Connector male bulkhead connector, Model : SMP(M)-JYD82-S
|
Model No. |
L | d | Interface | Note |
| SMP(M)-JYD43 | 2.7mm | 0.39 | Limited Detent | Hermetic, Engagement Depth: 2.79mm |
| SMP(M)-JYD43-S | 2.7mm | 0.39 | Smooth Bore | Hermetic, Engagement Depth: 2.79mm |
| SMP(M)-JYD65 | 1.5mm | 0.3 | Limited Detent | Hermetic, Engagement Depth: 2.79mm |
| SMP(M)-JYD82 | 2.1mm | 0.39 | Limited Detent | Hermetic, Engagement Depth: 2.79mm |
| SMP(M)-JYD82-S | 2.1mm | 0.39 | Smooth Bore | Hermetic, Engagement Depth: 2.79mm |
| SMP(M)-JYD92-F | 2.9mm | 0.6 | Full Detent | Hermetic, Engagement Depth: 2.79mm |
Note: we also have the pin OD =0.3, 0.45, 0.5, 0.7, 0.9, 1.3, please feel free to contact us if you need different size pins.
Applications:
Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
Packing & Shipping:
Packaging:
Package Dimensions: Outer Small Carton with L 26.5cm *W18.5cm *H14cm
Shipping:
Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 8-12 weeks, The delivery time we provide is conservative to ensure product quality before shipment.
