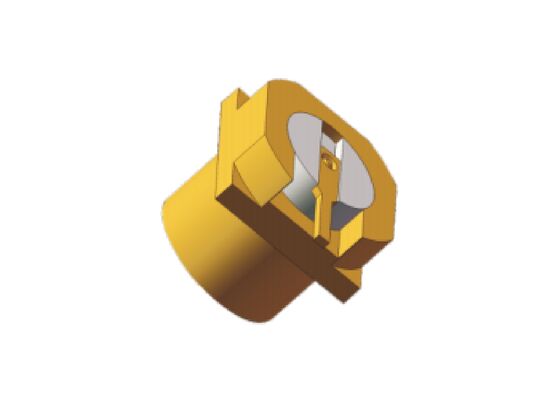

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm

Large Image : SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SMP-JHD72

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10bags/carton
Delivery Time:	6-8weeks for new production
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMP RF Connector	Center Contact:	Copper Alloy， Gold Plated
Shell:	Copper Alloy， Gold Plated	Frequency:	DC~18GHz
DWV:	500V	Rated Voltage:	170V
Imdepence:	50Ω	Insulation Resistance:	5000 Ohm
Temperature Range:	-55℃~+125℃	Gender:	Female / Jack
Mounting:	PCB Surface Mount	Dielectric:	PTFE, Glass
Samples:	Available，In Stock
Highlight:	SMP straight PCB RF connector , SMP female surface mount connector , 18GHz 50 Ohm SMP connector

Product Description:

SMP Straight PCB Limited Detent /Smooth Bore Jack Female Surface Mount 50 Ohm

Engineered for demanding high-frequency environments, Elite Electronics' SMP RF connectors deliver superior signal integrity and low VSWR performance up to 40 GHz. Designed to accelerate your production timelines, our innovative tool-free push-on interface eliminates the need for wrenches, significantly speeding up mating and demating cycles while ensuring a secure connection.Offering maximum design flexibility, our portfolio includes straight, right-angle, and flange-mount options, suitable for both PCB and cable assemblies. We understand that every application has unique requirements, which is why we provide three distinct male plug configurations:

Full Detent: Provides maximum retention force for the most critical, vibration-prone environments

Limited Detent: Balances security with ease of maintenance for routine serviceability

Smooth Bore: Optimized for high-density arrays where space is at a premium

SMP Insertion and extraction force: Full Detent > Limited Detent > Smooth Bore

Outline Dimension of Straight SMP RF Connector Female PCB Surface Mount Connector SMP-JHD72 :

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 0

Note1: Engagement Depth 2.79mm

Other surface mount SMP Connectors as following:

SMP Straight PCB Limited Detent Smooth Bore Jack Female Surface Mount 18GHz 50 Ohm 1

Note1: Engagement Depth 2.79mm, Hermeticlly sealed with glass

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
