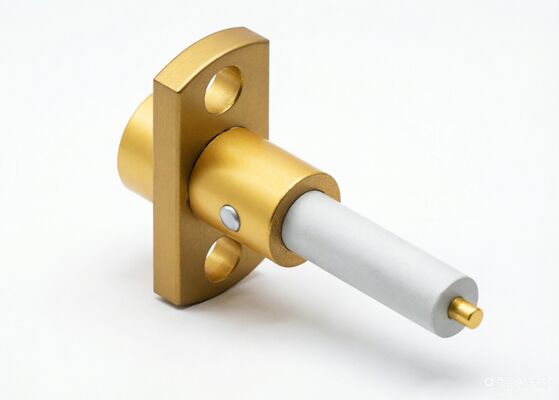

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design

Large Image : 50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SMP-JFD12

Payment & Shipping Terms:

Minimum Order Quantity:	In stock
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10bags/carton
Delivery Time:	6-8weeks for new production
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMP RF Connector	Center Contact:	Copper Alloy， Gold Plated
Shell:	Copper Alloy， Gold Plated	Gender:	Male Plug
Imdepence:	50Ohm	Rated Voltage:	170V
DWV:	500V	Insulation Resistance:	5000 Ohm
Mounting:	2 Hole Flange Mount	Surface:	Limited Detent
Frequency:	DC~18GHz	Temperature Range:	-55℃~+125℃
Dielectric:	PTFE	Samples:	Available，In Stock
Highlight:	50ohm SMP RF connector , SMP male plug flange mount , 18GHz push-on SMP connector

Product Description:

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design

Engineer high-frequency reliability into your test and communication systems with Elite Electronics’ SMP RF connectors. These precision-engineered components support frequencies up to 40 GHz, ensuring superior signal integrity in demanding environments. The innovative push-on coupling mechanism eliminates the need for tools, threading, or wrenches, enabling rapid, tool-free mating and unmating that significantly reduces installation time and simplifies field operations.

To meet the diverse mechanical and environmental demands of modern electronics, the series offers versatile configurations including straight and right-angle options. Whether your application involves cable assemblies, PCB mounting, flange mounting, or requires hermetically sealing and waterproofing, our SMP adapters deliver a tailored solution.

A key differentiator lies in the selection of male connector inner conductor structures, designed to match specific lifecycle and density requirements:

●

Full Detent: Engineered for permanent or semi-permanent installations where maximum retention force is critical and frequent mating cycles are not required.

●

Limited Detent: Optimized for applications requiring regular maintenance, frequent disconnection, and reconfiguration, balancing retention and ease of use.

●

Smooth Bore: Designed for high-density board-to-board assemblies where space is at a premium and multiple connectors are placed in close proximity.

The insertion and extraction force follows the order: Full Detent > Limited Detent > Smooth Bore, allowing engineers to precisely select the right mechanical interface for their specific application needs.

Outline Dimension of Straight SMP RF Connector male plug SMP-JFD12 Series:

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 0

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 1

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 2

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 3

Note 1: Engagement Depth 2.79mm

Applications:

Xi'an Elite Electronics is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 4

Packing & Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5*W18.5*H14cm

Shipping:

Shipping Time: 5-10 working days for stocked RF Coaxial Adapters Connector. For the new production, it will takes about 6-10 weeks, The delivery time we provide is conservative to ensure product quality before shipment.

50ohm SMP Male Plug Straight 2 Hole Flange Mount SMP RF Connector up to 18GHz Push-On Design 5
