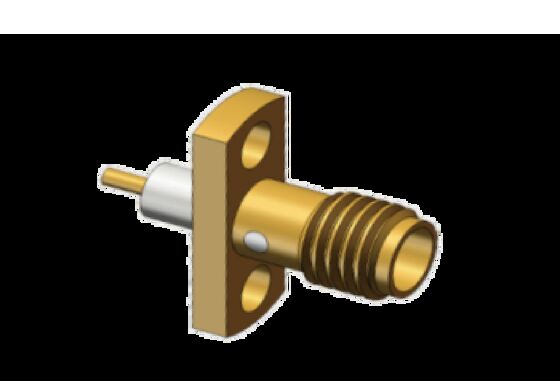

Copper Alloy Gold Plating Flange Mount SSMA RF Connector 18GHz for Signal Transmission
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Model: | SSMA-KFD178 | Frequency: | DC~18GHz |
|---|---|---|---|
| Mount Method: | Flange Mount | Center Contact: | Copper Alloy，Gold Plating |
| Shell: | Copper Alloy，Gold Plating | Insulator: | PTFE |
| Gender: | Female | Durability: | 500 Mating Cycles |
| Lead Time: | 5-10 Working Days For Stocks | Customization: | According To Drawing |
| Highlight: | gold plated SSMA RF connector,copper alloy flange mount connector,18GHz signal transmission RF connector |
||
Product Description:
The SSMA RF Connectors (Mini SMA) is a miniature threaded RF coaxial connector, representing a compact evolution of the standard SMA interface. Designed for high-density applications, it features a 10–36 UNS threaded coupling mechanism that ensures a secure, robust connection.
Engineered to accommodate smaller diameter cables, the SSMA RF connector operates effectively up to DC – 40 GHz, making it an ideal solution for space-constrained environments and high-frequency systems.
Superior Performance & Durability
Built as a reliable and versatile solution, the SSMA RF connector delivers exceptional electrical performance and long-term durability. It excels in demanding environments where precision and signal stability are critical.
Key Features:
●
Diverse Mounting Options: Available in flange and PCB mount configurations to suit various design requirements.
●
Premium Materials: The housing is crafted from high-quality copper alloy with gold plating, ensuring superior electrical conductivity and corrosion resistance.
●
Extended Service Life: The robust construction and high-grade materials significantly enhance performance and longevity.
Applications & Variants
Ideal for telecommunications, aerospace, and industrial electronics, the SSMA connector is the premium choice for engineers seeking a dependable, high-performance interconnect.
We offer a comprehensive range of variants to meet rigorous RF connectivity needs, including:
●
Flange mount
●
Cable-mating
●
PCB-mount types
Delivering exceptional quality, our SSMA RF connectors are designed to exceed the demands of modern high-frequency applications.
Technical Parameters:
| Model | SSMA-KFD178G |
| Mount Method | Flange Mount |
| Center Contact | Copper Alloy, Gold Plated |
| Housing | Copper Alloy, Gold Plated |
| Insulator | PTFE |
| Frequency | DC ~ 18 GHz |
| Durability | 500 Mating Cycles |
| Gender | Female |
| Customization | According To Drawing |
Outline Demension of SSMA Flange Mount:
SSMA RF Connector Jack 2 Hole Flange Mount Model: SSMA-KFD178G
Applications:
Aerospace fileds:
With its small size, light weight and vibration resistance, it is ideally suited for high-density circuit board interconnection in aircraft, satellite and radar systems.
Test & Measurement fileds:
In microwave test equipment, test fixtures of Vector Network Analyzers (VNA) and high-density probe stations, SSMA RF connectors are widely used to achieve compact RF connections and ensure the accuracy of high-frequency signal measurement.
Microwave Communication:
In modern base stations and microwave backhaul equipment, as devices trend towards miniaturization, SSMA RF connectors are commonly applied for high-frequency signal transmission in board-to-board or internal component connections, especially in space-saving modules.
Medical Electronic Equipment:
In high-end medical imaging equipment (e.g., the RF coil section of Magnetic Resonance Imaging (MRI) systems) and minimally invasive surgical equipment, the miniaturization of SSMA RF connectors delivers great value given the extremely limited internal space.
Industrial Electronics & High-Density PCB Design:
It is suitable for industrial control boards or sensor modules requiring ultra-high pin density, enabling reliable transmission of high-frequency signals in the limited space of circuit boards.
Customization:
Elite Electronics SSMA RF Connector Series includes SSMA RF flange mount connectors, mini SMA cable connectors and SSMA through-hole PCB mount connectors, delivering reliable, high-performance RF connectivity solutions tailored to your exact needs.
We offer flexible payment terms including T/T and L/C, and our scalable supply capacity can be fully customized to your specific requirements, ensuring on-time order fulfillment. Choose Elite Electronics SSMA RF connectors for consistent, dependable performance and bespoke solutions engineered to match your unique application demands.
SSMA Customization MOQ: 200pcs
Packing & Shipping:
Packing:
Elite Electronics SSMA RF Connectors are meticulously packaged for maximum protection during international transit. Each SSMA RF connector is individually sealed in anti-static ESD bags to prevent electrostatic discharge (ESD) damage and preserve component integrity. Sealed connectors are then placed in rigid, shock-absorbent cushioned cartons that effectively mitigate impact and vibration during shipping. All packaging is clearly marked with detailed product information—including model number, technical specifications, and exact quantity—for streamlined inventory management and quick product identification.
Shipping:
We provide reliable, global shipping solutions for prompt, safe delivery of our SSMA RF Connectors. All orders are shipped via trusted international logistics carriers with full real-time tracking available for complete shipment visibility. Our SSMA RF connectors are handled as fragile electronic components with specialized care throughout the entire shipping process to eliminate transit damage and ensure on-time, in-perfect-condition delivery.
FAQ:
Q1: What is the brand of the SSMA RF Connector?
A1: The SSMA RF Connector is branded ELT.
Q2: Where is the SSMA RF Connector manufactured?
A2: The SSMA RF Connector is manufactured in Xi'an City, China.
Q3: What certifications does the RF Connector have?
A3: The RF Connector is certified with ISO9001 and ISO14001.
Q4: What is the minimum order quantity and packaging details for the SSMA RF Connector?
A4: The minimum order quantity is 50 pieces. The packaging is 10 pieces per bag and 100 pieces per carton.
Q5: What are the delivery time and payment terms for ordering the SSMA RF Connector?
A5: Delivery time is 5-10 working days for stock orders. Payment terms accepted are T/T or L/C.
