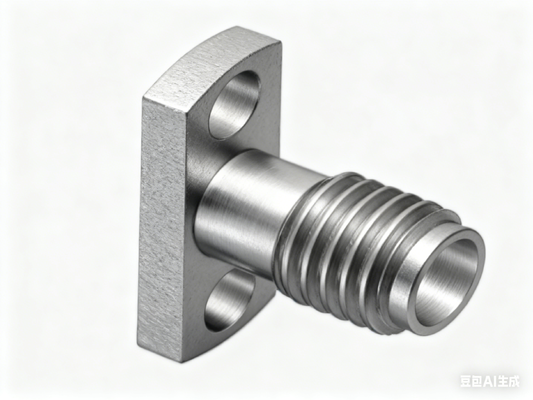

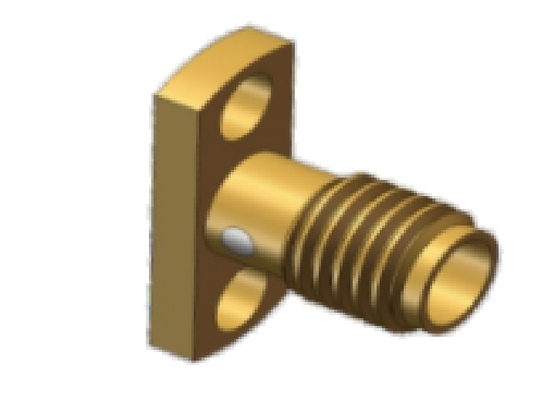

Stainless Steel SSMA Female Flange Mount Frequency Range 0.3MHz to 18GHz Using Microwave Component
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SSMA Female Flange Mount Microstrip Connector | Model: | SSMA-KFD160G |
|---|---|---|---|
| Frequency Range: | 0.3MHz-18GHz | Housing: | Stainless Steel, Passivation |
| Contacts: | Copper Alloy, Gold Palting | Insulator: | PTFE |
| Insulation Resistance: | >5000MΩ | DWV: | 750V |
| Impendence: | 50Ω | Temperature: | -55℃～+125℃ |
| In Stock: | Samples In Stock | ||
| Highlight: | Stainless Steel SSMA flange mount connector,SSMA female RF coaxial adapter,Microwave component 0.3MHz to 18GHz |
||
Product Description:
|
Electrical Characteristics
|
||
|
Impedance
|
50Ω
|
|
|
Frequency Range
|
DC~18GHz
|
|
|
Rated Voltage
|
250VRMS
|
|
|
Dielectrics Voltage-resistance
|
750VRMS
|
|
|
Insulation Resistance
|
≥5000MΩ
|
|
|
|
Outer conductor
|
Normal≤2.5mΩ
|
|
Center conductor
|
Normal≤4mΩ
|
|
|
VSWR
|
≤1.3
|
|
| VSWR | DC~18GHz | 18GHz~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.3 | ≤1.35 | ≤1.4 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.3 | ≤1.35 | ≤1.4 | |
| Others | ≤1.3 |
The outline demension of Stainless Steel Passivation SSMA Female Flange Mount Connectors Model: SSMA-KFD160G
Applications:
Xi'an Elite Electronic is a leading manufacturer of RF Connectors & Adapters, Microwave/Waveguide components & Cable Assemblies, serving in aerospace, aviation, navigation, satellite, radar, communications fields for more than 23 years.
Customization:
Product Customization Services for SSMP Female Flange Mount according drawing:
Brand Name: ELT
MOQ: 200 pcs
Price: Depending on the quantity
Please send us the drawing or details and we will let our engineer to arrange the evaluation or we recommend us the alternative model or supply our solution to you.
We also can supply the customization for the connectors such as SMA, SSMA, SMP, SSMP(SMPM), CSMP(SMPS), ASMP, N, TNC, TNCA, TMA, BMA, SBMA, 2.92mm, 2.4mm, 1.85mm, Micro D Connectors, RF loads, Antennas, Filters, Power Dividers, Coupler...
Packing and Shipping:
Packaging for SSMA Flange Mount Connectors:
1 Piece/ small plastic bag
10 Pieces/ larger plastic bag
100 Pieces/ carton box
The SSMA fanlge mount connectors comes securely packaged in a small cardboard box to ensure its protection during shipping. The box is labeled with the product name and specifications for easy identification.
For shipping, the SSMA flange mount connectors is placed in caron. We will supply the tracking No after shipping.
