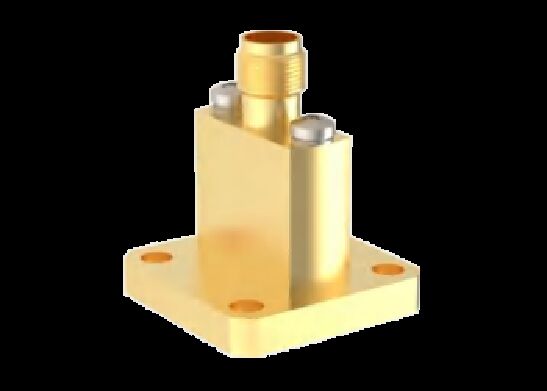

Waveguides to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180

Large Image : Waveguides to Coaxial Adapter with Waveguide Port as WR90，WR75, WR60, WR51, WR42, WR34, WR28, WR22, WR19, WR15, WR12, WR10, WRD750, WRD650, WRD500, WRD180 Get Best Price

Product Details:

Place of Origin:	Xi'an Shaanxi
Brand Name:	ELT
Certification:	ISO9001, ISO14001
Model Number:	K/BJ260-KFE5

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs if no stock
Price:	Depend on the quantity
Packaging Details:	Carton Box
Delivery Time:	Within 8-12 weeks after payment
Payment Terms:	L/C,T/T
Supply Ability:	Depend on your requirements

Contact Now

Detailed Product Description

Waveguide Size:	BJ260 (WR34)	Frequency Range:	21.7GHz～33GHz
VSWR:	≤1.3	Insertion Loss:	≤0.35dB
Body Geometry:	End Launch	Customization:	Avaliable
Highlight:	WR90 waveguide to coaxial adapter , WR15 waveguide port adapter , WRD750 waveguide coaxial converter

Product Introduction

Elite Electronic designs & manufactures waveguide-to-coaxial adapters with a frequency range of 5.4GHz to 110GHz. Boasting high reliability, compact size, and outstanding performance, these adapters are widely utilized in microwave measurement systems and millimeter-wave equipment,typically utilized in radar system designs for their high-power handling capabilities, in antenna feed networks for low loss and phase precision, and in test laboratories.

Waveguide ports are available in standard rectangular and double-ridged configurations, with custom non-standard waveguide ports also offered to meet specific user requirements. The coaxial end features a comprehensive range of connection interfaces, including N, TNC, SMA, SMP, 3.5mm, K (2.92mm), 2.4mm, 1.85mm, 1.0mm, 0.8mm and microstrip types. Structurally, the waveguide-to-coaxial adapters are categorized into two types: end-launch and right-angle. Notably, the right-angle model can also be configured for high-power applications.

Waveguide Rectangular short as WR with the accompanying number indicating the waveguide’s inner width in hundredths of an inch. Our product range includes waveguides rectangular according to standard models such as WR-90,WR-75, WR-60, WR51, WR-42, WR-34, WR-28, WR-22, WR-19, WR-15, WR-12, WR-10, WRD750, WRD650, WRD500, WRD180 . We also can custom according to the drawing.

Outline Drawing

WR34 to K 2.92mm Female End Lauch Waveguide to Coaxial Adapter, 21.7~33GHz

WR34 to K 2.92mm Female Right Angle Waveguide to Coaxial Adapter, 21.7~33GHz

Cross-references of Waveguide Standards -WR Series & BJ Series

Chinese Standard	International Standard	Frequency Range (GHz)
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR19	39.2~59.6
BJ620	WR15	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112
