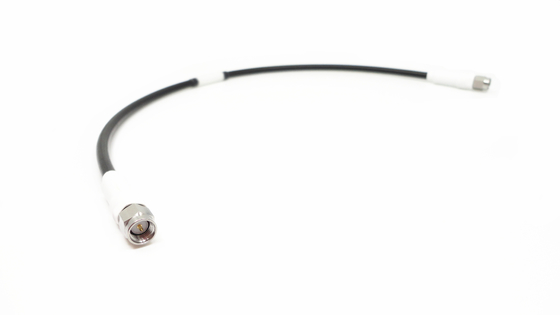

Both Ends 2.92mm Male Connector Cable Assemblies frequency up to 40 GHz and Customize the MF363A & CXN3507 cable length as 300mm, 500mm, 1000mm, 1500mm, 2000mm

Large Image : Both Ends 2.92mm Male Connector Cable Assemblies frequency up to 40 GHz and Customize the MF363A & CXN3507 cable length as 300mm, 500mm, 1000mm, 1500mm, 2000mm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	K-J507G-9/K-J507G-300

Payment & Shipping Terms:

Minimum Order Quantity:	30 Pcs for new producion
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag; 50pcs/carton
Delivery Time:	within 45 working days for stocked quantity
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	2.92 Male To 2.92 Male Cable Assemblies	Center Contact Of Connector:	Copper Alloy， Gold Plated
Shell Of Connector:	Stainless Steel, Passivation	Rated Voltage:	750V
Insulation Resistance:	5000Ohm	Frequency:	DC~40GHz
Temperature Range:	-55℃~+125℃	Mating Cable:	MF363A

Product Description:

2.92mm RF Coaxial Connector

K type, also known as 2.92mm connector, is a commonly used millimeter wave connector. The frequency of use can up to 40GHz. With air interface, it can be interchanged with SMA series and 3.5mm connectors. It has the advantages of small size, light weight, high frequency of use and reliable connection.

Elite Electronic Hot Selling RF Cable Assemblies

SMA series /SSMA series /K (2.92mm) series/ SMP series /SMPM series/ASMP series/CSMP (SMPS) series/ N series /TNC series/TNCA series/TMA connectors.

The above connectors we all have cable connectors mating the cable frequency from 3GHz ~ 40GHz. The calbe length we can arrange the customization. The MOQ: 30pcs.

Product Details of K Male to K Male RF Coaxial Cable Assembly with Length 500mm:

Technical		Materials & Finish
Impedance	/	Center Conductor of Connector	Copper Alloy, Gold Plating
DWV	1000V	Outer Conductor of Connector	Stainless Steel, Passivation
Insulation Resistance	≥5000MΩ	Mating Cable	MF363A
Temperature	Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Other Index	Frequency Range: 0.3MHz~40GHz

Outline Dimension of Stainless Steel 2.92mm Male Connectors Model: K-J507G

Both Ends 2.92mm Male Connector Cable Assemblies frequency up to 40 GHz and Customize the MF363A & CXN3507 cable length as 300mm, 500mm, 1000mm, 1500mm, 2000mm 0

Outline Dimension of 2.92mm male plug To 2.92mm male plug RF Coaxial Cable Assembly :

Both Ends 2.92mm Male Connector Cable Assemblies frequency up to 40 GHz and Customize the MF363A & CXN3507 cable length as 300mm, 500mm, 1000mm, 1500mm, 2000mm 1

Applications:

Elite Electronic cable assemblies are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
Both Ends 2.92mm Male Connector Cable Assemblies frequency up to 40 GHz and Customize the MF363A & CXN3507 cable length as 300mm, 500mm, 1000mm, 1500mm, 2000mm 2

Packing and Shipping:

Packaging:
The 2.92 male to 2.92mm male calbe assemblies are carefully packaged in a carton to ensure safe transportation. The cable is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.

Shipping:
We offer fast and reliable shipping for the both end 2.92 cable assemblies. After shipping, you will receive a tracking No of your shipment.
