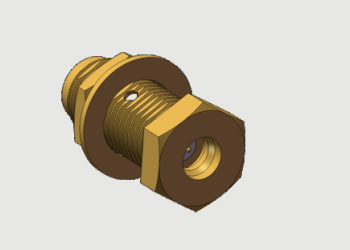

50 Ohm SMA Female Jack To SMP Male Plug limited detent / smooth bore with engagement depth 2.79mm bulkhead mount RF Coaxial Adapter frequency up to 18 GHz

Large Image : 50 Ohm SMA Female Jack To SMP Male Plug limited detent / smooth bore with engagement depth 2.79mm bulkhead mount RF Coaxial Adapter frequency up to 18 GHz Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SMA/SMP-KYJ1

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pcs for new producion
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag; 50pcs/carton
Delivery Time:	5-10 working days for stocked quantity
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMA Female To SMP Male Adapter	Center Contact:	Copper Alloy， Gold Plated
Shell:	Copper Alloy，Gold Plated	Imdepence:	50 Ohm
Rated Voltage:	500V	Insulation Resistance:	5000Ohm
Frequency:	DC~18GHz	Insulation Dielectric:	PTFE
Temperature Range:	-55℃~+125℃	Samples:	Available，In Stock
Mount Method:	Bulkhead Mount

Product Description:

The SMA RF coaxial connector is a small, high frequency coaxial connector. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability. This series of high performance connectors developed by Elite Electronic can reach up to 18GHz. It is the most widely used RF coaxial connector and widely used in microwave communication and microwave measurement equipment and other fields.

SMP is a sub-miniature push-on RFcoaxial connector, whichhas the characters of small size, light weight, excellent vabration-proof

performance, and wide working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can

reach 40GHz), and the plug has three interface forms- full detent, limited detent and smooth bore(including with catcher's mitt). Various

interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of board-to-board system. It’s

suitable for the install situation with the requirement of high reliability modular intensive.

Outline Dimension of SMA to SMP female to male Adapters SMA/SMP-KYJ1
50 Ohm SMA Female Jack To SMP Male Plug limited detent / smooth bore with engagement depth 2.79mm bulkhead mount RF Coaxial Adapter frequency up to 18 GHz 0

Note: Above SMP End is limited detent, the engagement depth 2.79mm

Outline Dimension of SMA to SMP female to male Adapters SMA/SMP-KYJ :

Note: Above SMP End is smooth bore, the engagement depth 2.79mm

Applications:

SMA to SMP adapters are widely used in the fields of aviation, navagation, aerospace, satcom, radar, antenna, microwave communication & digital communication, electronic, measurement fields.
50 Ohm SMA Female Jack To SMP Male Plug limited detent / smooth bore with engagement depth 2.79mm bulkhead mount RF Coaxial Adapter frequency up to 18 GHz 2

Packing and Shipping:

Packaging:
The SMA female to SMP male adapters is carefully packaged in a carton to ensure safe transportation. The connector is secured in place with protective foam padding to prevent any damage during shipping. The box is labeled with the product name and specifications for easy identification.
50 Ohm SMA Female Jack To SMP Male Plug limited detent / smooth bore with engagement depth 2.79mm bulkhead mount RF Coaxial Adapter frequency up to 18 GHz 3

Shipping:
We offer fast and reliable shipping for the SMA jack to SMP jack adapters. We will ship the stocked adapters within 5-7 business days. After shipping, you will receive a tracking No of your shipment.
