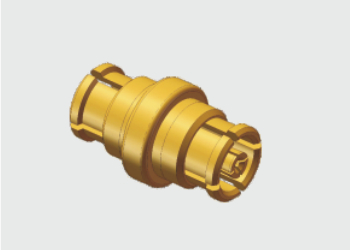

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm

Large Image : 50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	Rohs，ISO Certificates
Model Number:	SMP-KK25

Payment & Shipping Terms:

Minimum Order Quantity:	MOQ 50
Price:	Depending on the quantity
Packaging Details:	1pcs/plastic bag;10bags/carton
Delivery Time:	8 Weeks
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Product Name:	SMP Female To SMP Female Adapter	Center Contact:	Copper Alloy， Gold Plated
Shell:	Copper Alloy， Gold Plated	Imdepence:	50 Ohm
Rated Voltage:	170V	DWV:	500V
Insulation Resistance:	5000 Ohm	Frequency:	DC~40GHz
Dielectric:	Air	Temperature Range:	-55℃~+125℃
Samples:	Available，In Stock
Highlight:	40 GHz SMP Jack Adapters , 50 Ohm SMP Jack Adapters

Product Description:

SMP 50 ohm Micro-miniature Adapters

These adpters are primarily intended for applications where minimum dimensions and space-saving designs are required. They are suitable for use up to 40 GHz and the Push-on design allows the installer to mate connectors without the need for threads or wrenches.

SMP connector family contains straight and right angle variants for cable or soldered connection for pcb. According to the different using environment, the user can choose plugs with different structures. When a user does not need frequent insertion, they can use full detent structure. When they need many times of insertion, they can use limited detent structure. When they need more or need to assemble many SMP board to board connectors,they can use the smooth bore structure. Insertion and extraction force: full detent > limited detent > smooth bore

Outline Dimension of Straight SMP to SMP Jack to Jack Bullets SMP/SSMP-KK25 Series:

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 0

Model	L (different length)	Note
SMP-KK25	7.5mm	Female to Female
SMP-KK27	7mm	Female to Female
SMP-KK30	7.7mm	Female to Female
SMP-KK33	9.4mm	Female to Female

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 1

Model	L	Note
SMP-KK28	16.9mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 2

Model	L	Note
SMP-KK41	7.5mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 3

Model	L	Note
SMP-KK48	6.45mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 4

Model

Note

SMP-KK53

8.6mm

Jack to Jack,

Right end can only be used with smooth bore

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 5

Model	L	Note
SMP-KK72	5.8mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 6

Model	L (different length)	Note
SMP-KK96	17.35mm	Jack to Jack
SMP-KK97	9.6mm	Jack to Jack
SMP-KK98	11mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 7

Model	L	Note
SMP-KK197	13.2mm	Jack to Jack

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 8

Model	L	Note
SMP-KK201	22.7mm	Jack to Jack

Note: If you would like to customize the different length of SMP to SMP Adapters, Bullets. please contact us freely through sales3@xa-elite.com.cn.

Applications:

Xi'an Elite Electronic is a Leading Manufacturer of RF/Microwava /Wave-guide Connectors, Adapters & Cable Assemblies serving aerospace, aviation, navigation, satellite, radar, communications, electronics industry.
50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 9

Packing and Shipping:

Packaging:

Package Dimensions: Outer Small Carton with L 26.5*W18.5*H14cm

Shipping:

Shipping Time: 5-7 business days for stocked connectors and adapters. For the new production, once the goods are ready, we will arrange the shipment as earlier as we can.

50 Ohm Straight SMP Female / Jack To SMP Female / Jack Adapters / Bullets Frequency Up To 40 GHz with air dielectric and bullet length 5.8,7.5, 7,7.7, 9.4, 6.45, 16.9, 6.45,8.6, 9.6,11,17.35mm 10
