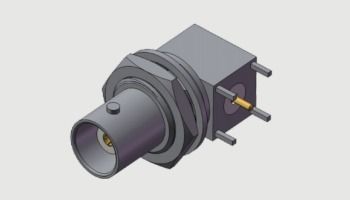

Female Bulkhead Coaxial Connector for 4 Leg PCB Through Hole Soldering up to 4 GHz in Commercial Environments

Large Image : Female Bulkhead Coaxial Connector for 4 Leg PCB Through Hole Soldering up to 4 GHz in Commercial Environments Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE,ROHS
Model Number:	BNC-KYWHD

Payment & Shipping Terms:

Minimum Order Quantity:	In Stock
Price:	Competitive
Packaging Details:	Standard Export Carton
Delivery Time:	5-7 working days after payment
Payment Terms:	L/C, T/T
Supply Ability:	35000pcs/year

Contact Now

Detailed Product Description

Product Name:	BNC Right Angle Female Connector	Material:	Copper Alloy With Nickel Plating
Gender:	Female	Surface Plating:	Nickel Plating
Mount:	4 Leg PCB Through Hole Soldering
Highlight:	Through Hole Bulkhead Coaxial Connector , Female Bulkhead Coaxial Connector , 4 GHz Bulkhead Coaxial Connector

Copper Alloy with Nickel Plating BNC RA Female Bulkhead Connectors 4 Leg through hole Soldering

Product Introduction

The BNC series connector is a bayonet-style RF coaxial connector. It features quick connections and reliable contact, and is mostly used in RF systems with frequencies below 4GHz. It is widely used in network systems, instrumentation, and computer interconnection fields.

Specification of : Commercial Grade Right Angle BNC female Bulkhead up to 11GHz for 4 leg through hole PCB soldering

Product Model	BNC-KYWHD
Technical		Materials & Finish
Impedance	50Ω	Center Conductor	Sn-P bronze, Gold plating
DWV	1500V	Outer Conductor	Copper Alloy, Nickel plating
Insulation Resistance	>5000MΩ	Insulation Dielectric	PTFE
Temperature	Operating Temp.: -55℃~+125℃ Storage Temp.: -55℃~+125℃
Frequency Range	DC~4GHz

Outline Drawing of Right Angle BNC female Bulkhead Connectors:

Female Bulkhead Coaxial Connector for 4 Leg PCB Through Hole Soldering up to 4 GHz in Commercial Environments 0

Application of RA BNC Jack Bulkhead Connectors:

* Instrumentation
* Automotive
* Satcom
* Computer/LANs
* Telecommunications
* Avionics, radars
* Telecommunication systems
* Navigation systems
* Research centres
* Satellite communications
