11.9GHz~18GHz WR62 To SMA Female Right Angle Waveguide To Coax Adapter SMA/BJ140-KF15
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | WR62 Waveguide To Coax Adapters | Material: | Brass |
|---|---|---|---|
| Plating: | Gold Plated | Frequency Range: | 11.9GHZ-18GHz |
| Connector: | SMA Female | VSWR: | 1.25 |
| Waveguide Size: | WR62 | Body Style: | Right Angle |
11.9GHz~18GHz WR62 To SMA Female Right Angle Waveguide To Coax Adapter
The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.
Specification of SMA/BJ140-KF15:
| Product Name | WR62 to SMA Female Waveguide to Coaxial Adapters |
| Model No. | SMA/BJ140-KF15 |
| Coaxial type | SMA Female |
| Waveguide Size | WR62 |
| Body Style | Right Angle |
| Frequency Range | 11.9GHz-18GHz |
| SMA Impedance | 50 Ohm |
| VSWR | 1.25 |
Advantages:
-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

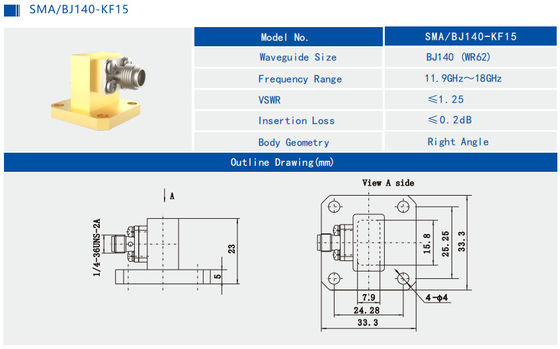

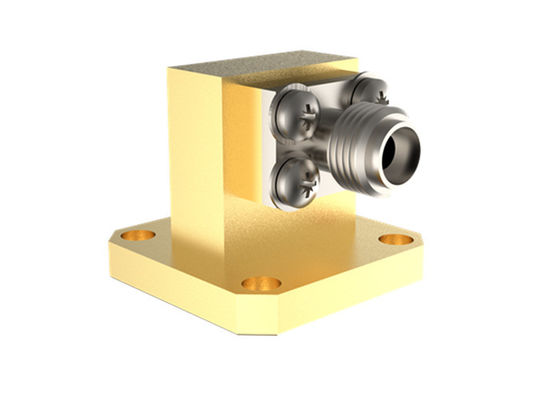

Outline Drawing and Pictures of WR62 to SMA Female Waveguide to Coax Adapter SMA/BJ140-KF15:
Related SMA Female Waveguide to Coax Adapters of Elite Electronic.
| Model Number | Description | Note |
| SMA/BJ100-KFE2 | WR90 to SMA female right angle adapters | 8.2GHz~12.5GHz |
| SMA/BJ100-KF6 | WR90 to SMA female right angle adapters | 8.2GHz~12.5GHz |
| SMA/BJ120-KFE | WR75 to SMA female end launch adapters | 9.84GHz~15GHz |
| SMA/BJ120-KF6 | WR75 to SMA female right angle adapters | 9.84GHz~15GHz |
| SMA/BJ140-KFE | WR62 to SMA female end launch adapters | 11.9GHz~18GHz |
| SMA/BJ180-KFE5 | WR51 to SMA female end launch adapters | 14.5GHz~22GHz |
| SMA/BJ180-KF2 | WR51 to SMA female right angle adapters | 14.5GHz~22GHz |
Cross-references of waveguide Standards
| Chinese Standards | International Standards | Frequency Range (GHz) |
| BJ84 | WR112 | 6.57~9.99 |
| BJ100 | WR90 | 8.20~12.5 |
| BJ120 | WR75 | 9.84~15.0 |
| BJ140 | WR62 | 11.9~18.0 |
| BJ180 | WR51 | 14.5~22.0 |
| BJ220 | WR42 | 17.6~26.7 |
| BJ260 | WR34 | 21.7~33.0 |
| BJ320 | WR28 | 26.3~40.0 |
| BJ400 | WR22 | 32.9~50.1 |
| BJ500 | WR18 | 39.2~59.6 |
| BJ620 | WR14 | 49.8~75.8 |
| BJ740 | WR12 | 60.5~91.9 |
| BJ900 | WR10 | 73.8~112 |
NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
