Product Details:
Payment & Shipping Terms:
|
| Product Name: | WRD500 Waveguide To Coaxial Adapters | Material: | Brass |
|---|---|---|---|
| Plating: | Gold Plated | Frequency Range: | 18GHZ-40GHz |
| Connector: | K2.92mm Female | VSWR: | 1.35 |
| Waveguide Size: | WRD180 | Body Style: | Right Angle |
| Highlight: | WRD180 waveguide to coax adapter,18-40GHz right angle adapter,K2.92mm female waveguide adapter |
||
The frequency of waveguide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP, SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.

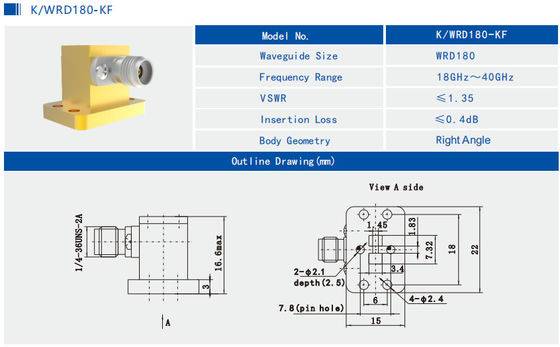

Specification of K/WRD180-KF:

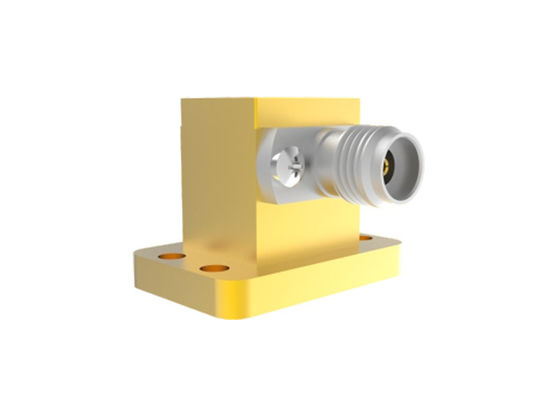

| Product Name | WRD180 to K2.92mm Female Waveguide to Coaxial Adapters |
| Model No. | K/WRD180-KF |
| Coaxial type | K2.92mm Female |
| Waveguide Size | WRD180 |
| Body Style | Right angle |
| Frequency Range | 18GHz-40GHz |
| Impedance | 50 Ohm |
| VSWR | 1.35 |
Related WRD Waveguide to Coax Adapters of Elite Electronic.
| Model Number | Description | Note |
| N/WRD500-KF1 | WRD500 to N Type female end launch adapters | 6GHz~18GHz |
| SMA/WRD650-JF | WRD650 to SMA male right angle adapters | 6GHz~18GHz |
| SMA/WRD750-JF | WRD750 to SMA male right angle adapters | 7.5GHz~18GHz |
| Custom Type | Customized sizes are acceptable |
![]()
![]()
![]()
Cross-references of waveguide Standard
| Chinese Standard | International Standard | Frequency Range (GHz) |
| BJ84 | WR112 | 6.57~9.99 |
| BJ100 | WR90 | 8.20~12.5 |
| BJ120 | WR75 | 9.84~15.0 |
| BJ140 | WR62 | 11.9~18.0 |
| BJ180 | WR51 | 14.5~22.0 |
| BJ220 | WR42 | 17.6~26.7 |
| BJ260 | WR34 | 21.7~33.0 |
| BJ320 | WR28 | 26.5~40.0 |
| BJ400 | WR22 | 32.9~50.1 |
| BJ500 | WR19 | 39.2~59.6 |
| BJ620 | WR15 | 49.8~75.8 |
| BJ740 | WR12 | 60~90 |
| BJ900 | WR10 | 74~110 |
NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.
