Male Plug Micro D Solder Contact Connectors with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts

Large Image : Male Plug Micro D Solder Contact Connectors with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts Get Best Price

Product Details:

Place of Origin:	Xi'an, China
Brand Name:	ELT
Certification:	ISO Certificates
Model Number:	J30J-15TJSL

Payment & Shipping Terms:

Minimum Order Quantity:	100
Price:	Depending on the quantity
Packaging Details:	Carton
Delivery Time:	5-10 working days for stocked quantity
Payment Terms:	T/T or LC
Supply Ability:	As requirements

Contact Now

Detailed Product Description

Center Conductor:	Copper Alloy, Gold Plating	Outer Conductor:	Aluminum Alloy, Nickle Plating
Mating Cable:	AFR-250, White Wire 0.1~0.15mm2	Contact Gender:	Male Plug
Insulation Resistance:	≥5000MΩ	DWV:	800V
Contact/Pin:	15-pins	Insulation Dielectric:	PBT
Termination Type:	Soldering

Product Description:

J30J series products equate to American MDM series, and the number of contacts including : 9, 15, 21, 25, 31, 37, 51, 66, 100.

Using twisted wire elastic pins (twist pins) with high contact density, suitable for wire core cross-sectional area of 0.1mm² to 0.15mm².

Outer Conductor: Aluminum Alloy, Nickle Plating

Center Conductor: Copper Alloy, Gold Plating

Contact Spacing: 0.05'' / 1.27mm

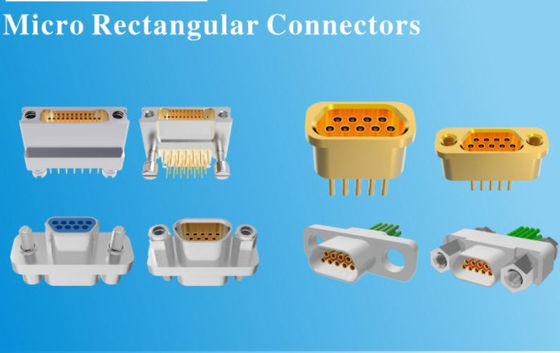

Elite Electronic mainly have three type of Micro D Connectors used for Crimping contact,Soldering contact,Print Board.

Technical Parameters:

Outer Conductor	Aluminum Alloy, Nickle Plating
Center Conductor	Copper Alloy, Gold Plating
DWV	800V
Mating Cable	AFR-250, White Wire 0.1~0.15mm2
Contact/Pin	15-pins
Mating Accessories	P, P0, P2, P3, P4, P5, P7, P8, P9, P10, P11, P14
Contact Gender	Male Plug
Operating/Storage Temp	-55℃~+125℃
Insulation Dielectric	PBT

Outline Dimension of Male Plug Micro D Connector with Soldering Cup: (Unit mm)

Male Plug Micro D Solder Contact Connectors with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts 0

Applications:

The ELT J30J Series Connector, is a versatile and reliable product suitable for a wide range of applications. With its high-quality design and construction, this connector is ideal for various occasions and scenarios.

It is widely used in aerospace, aviation, navigationk satellite, radar, communication, AI design, electronics.

Male Plug Micro D Solder Contact Connectors with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts 1

Customization:

J30J Series Connector Customization Services

Please contact us directly in order for us to arrange the evaluation by our Technical Dept.

Packing and Shipping:

Packaging and Shipping for J30J Series Connector/ Micro D Connectors:

The J30J Series Connector is carefully packaged to ensure secure delivery. Each connector is placed in a protective pacalge and then enclosed in a sturdy cardboard box to prevent any damage during shipping.

Male Plug Micro D Solder Contact Connectors with 9,15, 21, 25, 31, 37, 51, 66, 74,100 Contacts 2

For shipping, we use trusted carriers to deliver your order safely and on time. Your J30J Series Connector will be shipped with tracking information provided so you can monitor its journey to your doorstep.
