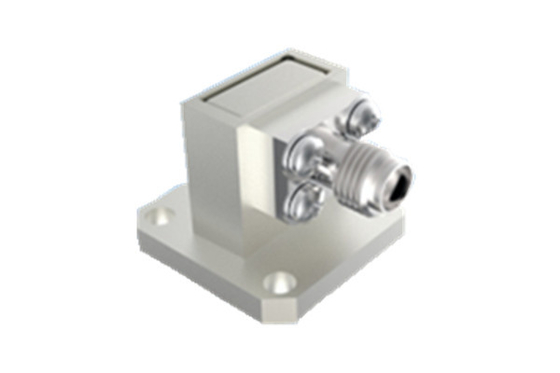

WR42 18-26.5GHz Waveguide to 2.92mm Right Angle Coaxial Adapter for Spacecraft

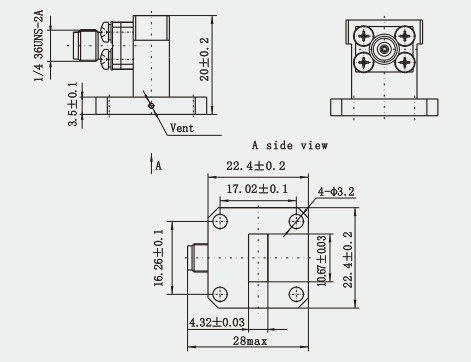

Outline Drawing:(mm)

Features:

• ^{Wide Bandwidth: Waveguide to 2.92 coaxial adapters support a wide range of frequencies, which makes them adaptable to a wide variety of microwave and millimeter wave applications.}
• ^{Low Insertion Loss: These waveguide to coax adapters are designed to optimize the signal transmission path and reduce energy loss, which reduces insertion loss and improves overall system efficiency.}
• ^{Low VSWR: VSWR (standing wave ratio) is an important measure of the degree of signal reflection. The waveguide to 2.92 coaxial adapter has a relatively small VSWR, which indicates that it is less reflective in the operating frequency band, and is able to efficiently convert signals from one transmission line type to another without introducing excessive interference or distortion.}
• ^{Compact: The relatively small size of the 2.92mm coaxial connector makes it useful in space-constrained applications such as aerospace and portable communications equipment.}

Application:

• ^{Satellite Communications: In satellite communications systems, 2.92 waveguide coaxial adapterss are used to convert coaxial signals from earth stations into signals suitable for transmission through waveguides for efficient communications with satellites.}
• ^{Radar Systems: In radar systems, this waveguide to coax adapter is used to connect the coaxial ports of radar transmitters and receivers to the waveguide ports of the antenna system to ensure efficient transmission of radar signals.}
• ^{Wireless communication: In wireless communication base stations, 2.92 waveguide coaxial adapters are used to convert coaxial signals inside the base station into transmission signals suitable for external antenna waveguide systems.}
