Send Message

Xi'an Elite Electronic Industry Co., Ltd.



Leading Provider Of Systematic Interconnection Solution In China

Home
Products
About Us
Factory Tour
Quality Control
Contact Us
Request A Quote
News
VR SHOW
Home ProductsWaveguide To Coaxial Adapter

WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

I got your high frequency connectors and they are really good!

—— Jacky, Korea

We tested cables and they all work as expected.

—— Josh, UK

WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz

WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz
WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz

Large Image :  WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ISO 9001:2015, ISO 14001:2015
Model Number: K/BJ220-KFE7
Payment & Shipping Terms:
Minimum Order Quantity: 5 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 5-7 workdays(for stocks)
Payment Terms: T/T, L/C, Credit Card, Paypal
Supply Ability: 10,0000 pcs per month
Detailed Product Description
Product Name: WR42 K2.92mm Waveguide To Coaxial Adapters Material: Brass
Frequency Range: 17.6GHz-26.7GHz Connector: K2.92mm
VSWR: 1.35 Impedance: 50 Ohm
Waveguide Size: WR42,BJ220 Body Style: End Launch
Highlight:

K2.92mm Waveguide To Coax Adapter

,

WR42 BJ220 Waveguide To Coax Adapter

,

17.6GHz~26.7GHz Waveguide To Coax Adapter

WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz

The frequency of wave-guide to coax adapters processed by Elite Electronic (ELT) cover 5.4GHz-110GHz. With high reliability, small size and excellent performance, it is widely used in microwave measurement and millimeter wave equipment. The waveguide has standard rectangular and double-ridge waveguides, and non-standard waveguides can be customized according to user requirements. The coaxial end connection interface includes N, TNC, SMA, SMP,SSMP, 3.5, K (2.92), 2.4, 1.85, 1.0 and microstrip. Waveguide to coax adapters are divided into two types: end Launch and right angle launch from interface orientation. Among them, the RA launch type can also be used as a high-power structure.



Specification of K/BJ220-KFE7:

Product Name WR42 Waveguide to K2.92mm Coaxial Adapters
Model No. K/BJ220-KFE7
Coaxial type K2.92mm
Waveguide Size WR42 (BJ220)
Body Style End Launch
Frequency Range 17.6-26.7GHz
SMA Impedance 50 Ohm
VSWR 1.30



Advantages:
-Our waveguide adapters are of high reliability, miniature size and excellent performance etc, which makes them extensively adopted in microwave measurement and millimeter wave devices etc.

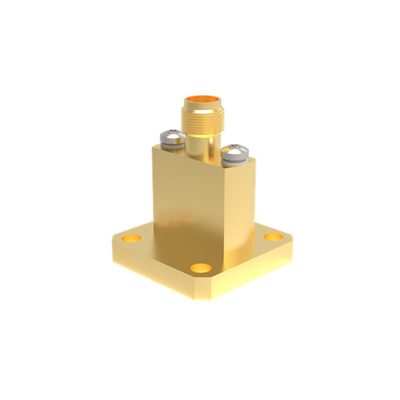

Outline Drawing and Pictures of WR42 BJ220 to 2.92mm Female Waveguide to Coax Adapter K/BJ220-KFE7:
WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz 0


List of Waveguide to 2.92mm Coaxial Adapters:

Model Number Description Note
K/BJ220-KF6 WR42(BJ220) to 2.92mm female right angle adapters
K/BJ220-KFE7 WR42(BJ220) to 2.92mm female end launch adapters BJ220=WR42
Custom Type Customized sizes are acceptable



WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz 1

WR42 BJ220 To K2.92mm Female End Launch Waveguide To Coax Adapter 17.6GHz~26.7GHz 2







Cross-references of waveguide Standards

Chinese Standards International Standards Frequency Range (GHz)
BJ84 WR112 6.57~9.99
BJ100 WR90 8.20~12.5
BJ120 WR75 9.84~15.0
BJ140 WR62 11.9~18.0
BJ180 WR51 14.5~22.0
BJ220 WR42 17.6~26.7
BJ260 WR34 21.7~33.0
BJ320 WR28 26.3~40.0
BJ400 WR22 32.9~50.1
BJ500 WR18 39.2~59.6
BJ620 WR14 49.8~75.8
BJ740 WR12 60.5~91.9
BJ900 WR10 73.8~112

Waveguide to Coax Adapter-ELT 2024.pdf



NOTE:
We have over 1,000 types of Waveguide to Coaxial Adapters for choice, if the adapter you are using is not found, please contact us with your details. ODM dimension is welcomed.







Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us
