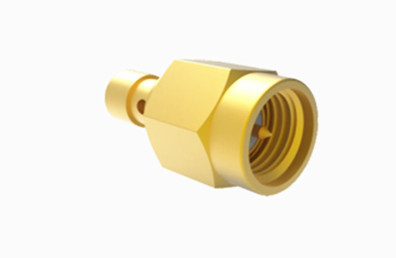

SMA Male Brass Gold Plated RF Connector For SFF-50-1.5-1/RG316 Cable
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Item: | SMA RF Connector | Plating: | Gold Plated |
|---|---|---|---|
| Connector Gender: | Male | Impedance: | 50Ω |
| Frequency: | DC~18GHz | Lifetime: | 500 Cycles |
| Body: | Brass | Type: | SMA |
| Highlight: | Male SMA RF Connector,Brass SMA RF Connector,Gold Plated SMA RF Connector |
||
SMA Male Brass Gold Plated RF Connector for SFF-50-1.5-1 /RG316 Cable
The SMA RF coaxial connector is a compact, high-frequency coaxial connector designed in compliance with MIL-C-39012. It boasts several advantages, including its diminutive size, extensive frequency range, exceptional mechanical and electrical characteristics, and high dependability. This type of connector is the most commonly utilized in radio frequency coaxial applications. It sees widespread use in various domains such as microwave communications and microwave measurement apparatuses. The superior performance connectors from our company in this series are engineered to support frequencies up to 20GHz.

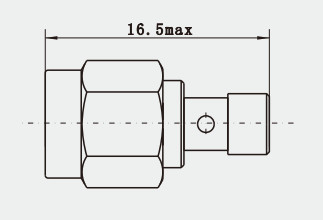

Specifiacation:
Note:The specific data of the model are based on the data in the product specification sheet.
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~18GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MOhm | |
| Contact Resistance | Outer conductor | ≤2 mΩ |
| Center conductor | ≤3 mΩ | |
Characterization:
1. Standardization and Compatibility: SMA connectors follow standard size and electrical specifications, ensuring compatibility with a wide range of RF components and devices.
2. Environmental Resistance: Some versions of SMA connectors are designed to withstand harsh environmental conditions, being waterproof, dustproof, or corrosion-resistant.
3. Wide Application Range: Due to their performance features, SMA connectors are widely used in wireless communications, test and measurement sectors.
Application:
The SMA connector is a widely used coaxial connector in the RF and microwave industry, known for its compact design, wide frequency range, excellent mechanical and electrical performance, and high reliability. These characteristics make SMA connectors applicable across fields such as microwave communication,measurement and test equipment,satellite communications, and scientific experiments.
Other Products:
1.SMA Right-Angle Female Flange-Mount RF Coaxial Connector
| Model No. | L | L1 | D | Note |
| SMA-KWFD101 | 3 | 3 | 1.3 | |
| SMA-KWFD101G | 3 | 3 | 1.3 | SS housing |
| SMA-KWFD115 | 4 | 2 | 0.6 | |
| SMA-KWFD131 | 15 | 3 | 1.3 | |
| SMA-KWFD147 | 4 | 4 | 1.3 | |
| SMA-KWFD169 | 3 | 0.6 | 0.4 | |
| SMA-KWFD234 | 3 | 3 | 1 |
2.50Ohm Female Jack Flange Mount SMA RF Connector
| Model No. | L | L1 | L2 | D | D1 | D2 | Note |
| SMA-KFD217A | 4 | 7 | 6 | 1.3 | 4.1 | 2.2 | |
| SMA-KFD746 | 0 | 1.1 | 5.7 | 1.3 | 0 | 2.6 | |
| SMA-KFD1197 | 4 | 4.5 | 5.7 | 1 | 4.1 | 2.6 | |
| SMA-KFD1304 | 0 | 1 | 5.7 | 0.8 | 0 | 2.2 | |
| SMA-KFD1401 | 3.3 | 5 | 5.7 | 1.3 | 4.1 | 2.6 |
Product Catalog:
| RF Adapter |
| Waveguide To Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMA Connectors, if the connector you are using is not found, please contact us with your details.
