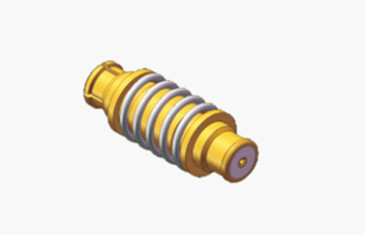

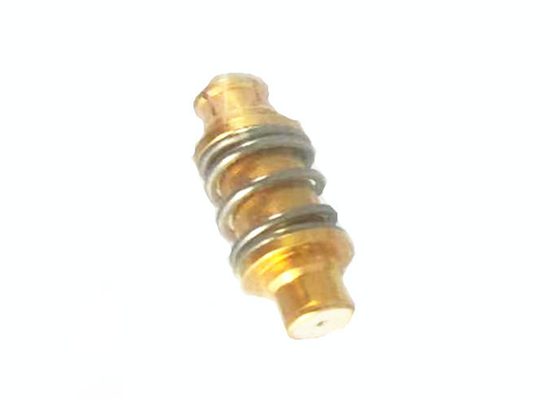

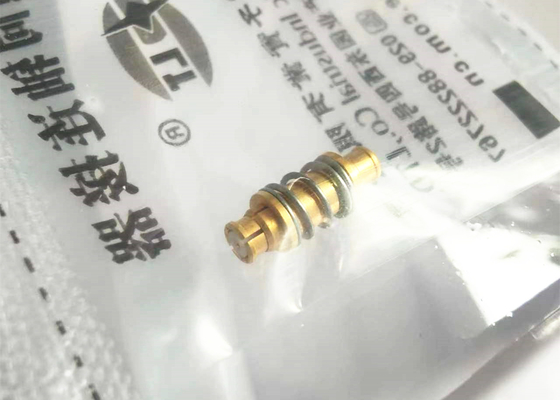

SMP Female To Female Bullet Spring Loaded Straight RF Adapter Connector

Large Image : SMP Female To Female Bullet Spring Loaded Straight RF Adapter Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT(Elite)
Certification:	ISO-9001-2015
Model Number:	SMP-KK190T

Payment & Shipping Terms:

Minimum Order Quantity:	50 pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	L/C, T/T, Western Union, Credit Card
Supply Ability:	300,000,000 pcs per year

Contact Now

Detailed Product Description

Product Name:	SMP Female To Female RF Adapter	Impedance:	50Ohm
Body Material:	Brass	Color:	Gold Plated
Body Style:	Straight Bullet Spring Loaded	Gender:	Female To Female
Type:	RF Adapter SMP Female	Other:	Spring Loaded
Highlight:	SMP Female To Female RF Connector , Straight RF Adapter Connector , Spring Loaded RF Connector

SMP Female to Female Bullet Spring Loaded Straight RF Adapters Connector

SMP is a sub-miniature push-on RF coaxial connector, which has the characters of small size, light weight, excellent
vabration-proof performance, and wide working broadband, etc. Operating frequency up to 30GHz (our product of high
performance SMP connector can reach 40GHz), and the plug has three interface forms- full detent, limited detent and
smooth bore(including with braking). Various interface forms can satisfy the required axial or radial movement of blind
mating in the couple usage of board-to-board system. It’s suitable for the install situation with the requirement of high
reliability modular intensive.

The SMP is a compact, push-on RF coaxial connector adapter that boasts a small form factor, lightweight design, excellent seismic performance, and broad operating bandwidth. It has an operating frequency range of up to 30GHz (our high-performance SMP connectors can reach 40GHz), and the plug features three interface forms: full detent, limited detent, and smooth bore (including with braking). These various interface forms can accommodate the required axial or radial movement for blind mating in the coupling of broadband to broadband connectors. The SMP is ideal for use in installations requiring high reliability and modular intensity.
Catalog SMP Adapter.pdf

SMP Female To Female Bullet Spring Loaded Straight RF Adapter Connector 0

Note:The specific data of the model are based on the data in the product specification sheet.

General Specification for SMP Connector Adapter
Impedance	50Ω
Frequency Range	DC~40GHz
Rated Voltage	170VRMS(at sea level)
Dielectrics Voltage-resistance	500VRMS(at sea leavel)
Insulation Resistance	≥2000MΩ
Contact Resistance	Outer conductor	normal≤2.5mΩ, hermetically sealed ≤4mΩ
Contact Resistance	Center conductor	normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range	DC~18GHz	18~26.5GHz	26.5~40GHz
VSWR for straight connector	≤1.25	≤1.3	≤1.5
VSWR for right angel connector	≤1.3
VSWR for adapter	≤1.2	≤1.3	≤1.5
Center Conductor	Male	Sn-P bronze	gold plated
Center Conductor	Female	beryllium bronze	gold plated
Elastic Contact	beryllium bronze		gold plated
Shell and other Metal Parts	gold plated brass passivated stainless steel
Insulators	glass sintering/PTFE/PEI
Leakage Rate for hermetically sealed connector	1.01325×10-³ Pa·cm³ /s

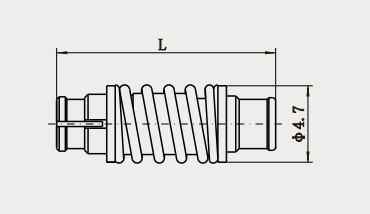

Outline Drawing of
SMP Female to SMP Female RF Adapter
SMP Female To Female Bullet Spring Loaded Straight RF Adapter Connector 1

NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
