Product Details:
Payment & Shipping Terms:
|
| Product Name: | SMP RF Coaxial Conector | Frequency Range: | DC~40GHz |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Gender: | Female | Model: | SMP-JHD61 |
| High Light: | SMP Male PCB Mount RF Plug,4 Legs PCB Mount RF Connector,DC 40GHz SMP RF Plug |
||

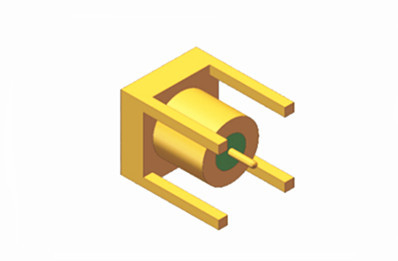

SMP Male PCB Mount RF Connector Plug with 4 Legs: High-Quality, Durable, and Reliable Solution for Your RF Connectivity
SMP is a compact push-on or snap coupling RF coaxial connector, known for its small size, lightweight, excellent seismic performance, and broad working bandwidth. It has an operating frequency of up to 30GHz (our SMP connector can reach 40GHz), and the plug comes in three interface forms: full detent, limited detent, and smooth bore (including with braking). The PCB mount, cable mount, and in-series adapters provide an interconnect solution for board-to-board, blind mate, and rack-and-panel applications while maintaining package density. It is suitable for high-reliability modular intensive installations.
Specification
| Electrical Characteristics | ||||
| Impedance | 50Ω | |||
| Frequency Range | DC~40GHz | |||
| Rated Voltage | 170VRMS* | |||
| Insulation Resistance | ≥2000MΩ | |||
| Dielectrics Voltage-resistance | 500VRMS* | |||
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ | ||
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |||
| VSWR | DC~18GHz | 18~26.5GHz | 26.5~40GHz | |
| Straight | ≤1.25 | ≤1.3 | ≤1.5 | |
| Right Angle | ≤1.3 | |||
| Adapter | ≤1.2 | ≤1.3 | ≤1.5 | |
| Other | ≤1.3 | |||
| Material & Mechanical Characteristics | ||||
| Center Conductor | Male | Sn-P Bronze, gold plated | ||
| Female | Beryllium bronze, gold plated | |||
| Elastic Contact | Beryllium bronze | Gold plated | ||
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation | ||
| Insulators | Glass sintering/PTFE/PEI | |||
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |||
* maximum sea-level
Features and Benefits
The SMP connector is a highly shielded, very small interconnectThe SMP connector is a highly shielded, very small interconnect typically used in miniaturized high-frequency coaxial modules and high-data-rate applications such as antennas, broadband installations, testing and measurement, and quantum computing. Due to its compact design, the SMP connector is widely used to facilitate dense packaging in RF/microwave applications.
Applications
1,In RF/microwave applications, SMP connectors are commonly used to connect coaxial cables and circuit boards. Due to their small size and high frequency characteristics, SMP connectors are widely used in wireless communication, radar, satellite communication, testing and measurement, and other fields.
2,SMP connectors are also commonly used in medical equipment such as ultrasound devices, MRI devices, etc. In these applications, SMP connectors are used to connect cables and circuit boards to transmit high-frequency signals.

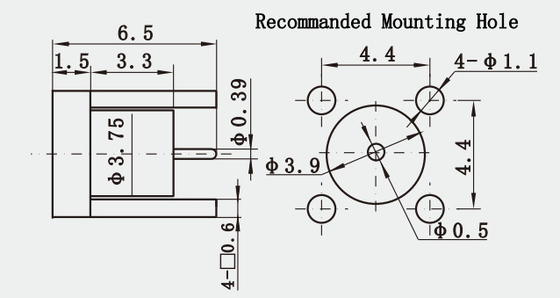

Detailed Drawing
Since the matched load needs to be customized according to your needs, please provide the following requirements when you send us inquiry:
*The frequency range you need.
*Power requirement.
*Connector type
*Your special requirements if you have (VSWR, temperature, size, etc.)
