Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector

Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector
Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector

Large Image :  Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMA-KHD
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 Pieces Per Month
Detailed Product Description
Gender: Female Impedance: 50Ω
Frequency: DC~18GHz Durability: 500 Cycles
Insulation Resistance: ≥5000MΩ VSWR: ≤1.3
Insulating Medium: PTFE
High Light:

Four Legs SMA Jack

,

SMA Jack Termination Connector

,

Four Legs SMA Jack

Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector

SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume, good bandwidth, superior electrical characteristics.



SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.



Electronic and Material Characterials:



Electronic and Material Characterials
Impedance 50Ω
Frequency Range DC~18GHz
Rated Voltage 335 VRMS (Maximum sea-level)
Dielectrics Voltage-resistance 1000 VRMS (Maximum sea-level)
VSWR ≤1.3
Insulation Resistance ≥5000MΩ
Center conductor Male Brass                   gold plated
Female Beryllium copper  gold plated
Shell and other metal parts Brass                    gold plated
Stainless steel       passivated
Cable sheath Brass                     nickle plated
Insulator PTFE
Seal ring Silicon rubber
Mating torque 0.79 -1.13 N.m

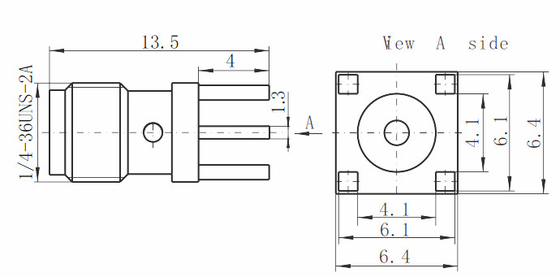

Outline Drawing:

Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector 0

Model Number L L1 L2 D D1 Description
SMA-KHD 13.5 4 4 1.3 1.4 4 legs SMA female rf connector  solder for PCB
SMA-KHD109 12 2.5 2.5 1.3 1.4
SMA-KHD112 12 2.5 1.6 1.3 1.4
SMA-KHD117 13.5 4 4 0.9 1
SMA-KHD150 14.5 5 5 1.3 1.4
SMA-KHD158 15.5 6 6 0.9 1



Application:
*Aerospace
*Broadband
*Instrumentation
*Phased array antennas
*Telecommunications

*Board-to-board interconnect

Four Legs PCB/Panel Mount SMA Female Straight Transmission Line Termination Connector 1


NOTE:

We have over 10,000 types of SMA Connector, if the connector you are using is not found, please contact us with your details.
