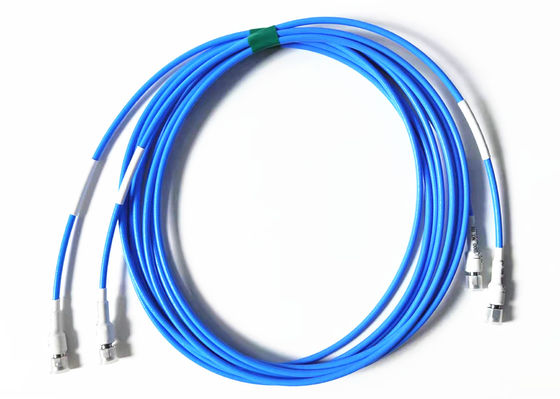

3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm

3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm
3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm

Large Image :  3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: SMA-J402G/SMA-J402G-3000
Payment & Shipping Terms:
Minimum Order Quantity: 10
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 1,000,000 pcs Per Month
Detailed Product Description
Plating: Nickel Plated Impedance: 50Ω
Certificate: CE ROHS Cable Lenght: 3000mm
Frequency Range: 0.04~6GHz Insertion Loss: ≤3.75dB
Insulation Resistance: ≥5000MΩ VSWR: ≤1.25
High Light:

Low PIM RF Cable Assemblies

,

3000mm Length RF Cable Assemblies

,

6GHz RF Cable Assemblies

SMA Male to Male RF Cable Assemblies L=3000mm





Cable length can be customized according to customer's requirement.



In addition to our standard offering, Elite Electronic also offers a variety of customized options for these interconnect products, which include different connector options,higher and lower frequency coverage, extended environmental testing, etc. Our team of dedicated Engineers can help develop the right solution for your application needs.

3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 0

Specifiacation:



Electrical Characteristics
Impedance 50Ω
Frequency Range Connect with solf cable DC~12.4GHz
Connect with semi-rigid cable DC~18GHz
Rated Voltage 335VRMS
Dielectrics Voltage-resistance 1000VRMS
Insulation Resistance ≥5000MΩ
Center Resistance Center Conductor ≤3.0mΩ
Outer Conductor ≤2.0mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Sn-P Bronze Gold plated
Elastic Contact Beryllium bronze Nickel plated
Shell and other Metal Parts Brass Nickel plated
Stainless Passivation
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles
Tightening torque of connection 0.79-1.13N .m





Application:



* Broadband
* Instrumentation
* Antennas
* Telecom

* Aerospace
* Broadband
* Instrumentation
* Phased array antennas
* Telecommunications

* Board-to-board interconnect



Product Detail:

3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 1

3000mm Length RF Cable Assemblies Nickel Plated 6GHz Flex402 Cable Diameter=0.91mm 2



Features



•0-26.5 GHz
•Standard brass, non-magnetic brass and stainless steel material options
•Patented High Frequency and Self Fixture end launch connectors
•Quick connect cable plugs and adapter



Assembly shop capability:



*Automatic stripping

*Automatic laser stripping

*Temperature controlled soldering

*Clean room

*Laser marking



Advantages:



√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500 experienced workers with over 10 production line

√ Specializes in manufacturing RF connector more than 20 years

√ Have long and Rich cooperation experience with national project components supply

√ With our own factory with 35,000㎡

√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

√ Competitive price

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Monthly average turnover is 10million

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers



Product Cataloge:

RF Adapter
SMA/SSMA RF Connector
SMP/SSMP RF Connector
TNC RF Connector
N Type RF Connector
MCX/MMCX RF Connector
BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm)
RF Cable Assemblies
Waveguide to Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints







NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your detai
ls.
