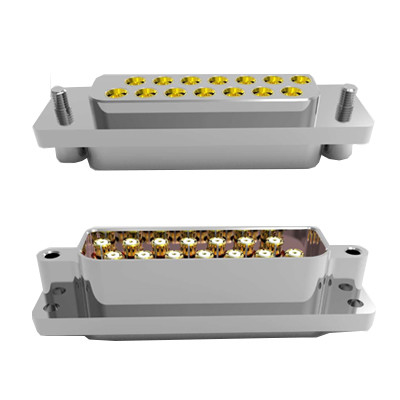

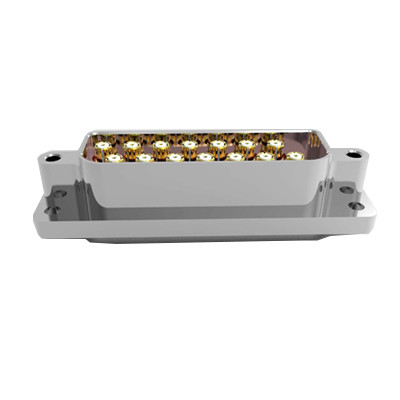

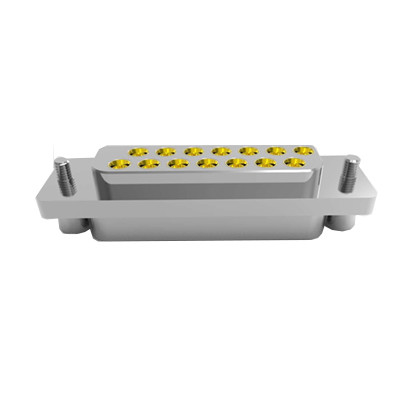

Rectangular SMA/SMP RF Integrated Connector For Cable

Rectangular SMA/SMP RF Integrated Connector For Cable
Rectangular SMA/SMP RF Integrated Connector For Cable Rectangular SMA/SMP RF Integrated Connector For Cable Rectangular SMA/SMP RF Integrated Connector For Cable

Large Image :  Rectangular SMA/SMP RF Integrated Connector For Cable Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: CE ROHS
Model Number: ELT-J41P -T14GJ~J41P-Z14GK
Payment & Shipping Terms:
Minimum Order Quantity: 100pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 10,000pcs Per Month
Detailed Product Description
Product: Integrated Connector RF Leakage: Low
Certificate: CE ROHS Material: Zinc Alloy / Brass/Metal
VSWR: ≤1.3 Application: Array Surveillance Radar System
Temperature Range: -55°C~+125°C Insulating Medium: PTFE
Highlight:

SMP RF Integrated Connector

,

SMA RF Integrated Connector

,

Integrated Connector For Cable

Salt-spray Resistance/Moisture-resistance RF Integrated Connector



Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.

Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.

Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.



Specification
Frequency Range        0.04GHz-18GHz
High Frequency 14 pins
VSWR ≤1.3
Cable Type Simi-flexible Cable
Voltage Resistance 500V
Insulation Resistance 5000MΩ
Custom Size Available
Recommanded Cable .086,.141



Related Product List

J23SM Series
J44P Series
J41B Series
J45P Series
J51M Series
J63M Series
J76P Series



Detailed Drawing
Rectangular SMA/SMP RF Integrated Connector For Cable 0

Rectangular SMA/SMP RF Integrated Connector For Cable 1Rectangular SMA/SMP RF Integrated Connector For Cable 2
