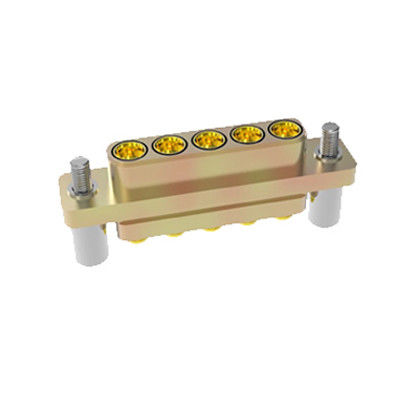

Rectangular SMA/SMP RF Integrated Connector

Large Image : Rectangular SMA/SMP RF Integrated Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT
Certification:	CE ROHS
Model Number:	ELT-J26P -T5GJ/J26P -Z5GK

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10,000pcs Per Month

Contact Now

Detailed Product Description

Product:	Integrated Connector	RF Leakage:	Low
Certificate:	CE ROHS	Material:	Zinc Alloy / Brass/Metal
VSWR:	≤1.3	Application:	Array Surveillance Radar System
Pins:	5	Recommanded Cable:	CXN3506
Highlight:	RF Integrated Connector , SMA/SMP Integrated Connector , Rectangular Integrated Connector

Salt-spray Resistance/Moisture-resistance RF Integrated Connector

Integrated connectors are miniaturized, lightweight connectors designed to achieve simultaneous transmission of multichannel signals. They are applicable to multi-signal transmission occasions where the space is limited, so the weight and environment characteristics of connectors are critical.

Our integrated connectors can be classified into RF integrated connectors and high & low frequency hybrid integrated connectors. Our integrated connectors are push-on screw-threaded coupling with metal outer conductor. Interfaces of our RF integrated connectors comply with GJB5246; Interfaces of our hybrid integrated connectors can be customized.

Integrated connectors are designed with compact size, keying for incorrect connections, reliable contact, shock resistance, anti-vibration, salt-spray resistance, high performance at high frequency, etc.

Specification

Frequency Range	0.04GHz-18GHz
High Frequency	5 pins
VSWR	≤1.3
Cable Type	CXN3506
Voltage Resistance	500V
Insulation Resistance	5000MΩ
Custom Size	Available
Cable	Flexible Cable
