Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

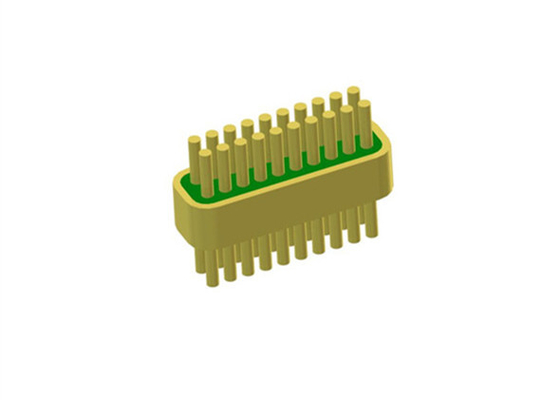

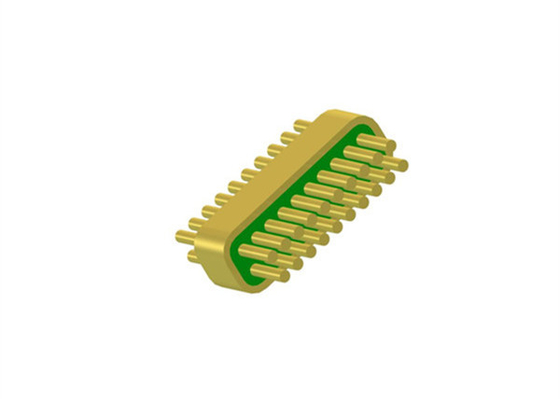

Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface

Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface
Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface

Large Image :  Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface Get Best Price

Product Details:
Place of Origin: China
Certification: ROHS ISO-9001-2015
Model Number: JMC-1718-JH
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Detailed Product Description
Brand Name: ELT(Elite) Plating: Gold Plated
Pin: Multi-pin Pin Number: 20 Pins
Pin Material: Kovar 4J29 Glass Material: 7052,7070, DM308
Hermecity: <1.01325 X 10E-08 Std.cc/s Certificate: ROHS ISO-9001-2015
Package: Glass To Metal Seals ODM: Can Be Customized According To Your Requirement
High Light:

2 Rows Hermetic Header

,

Diameter 0.4mm Hermetic Header

,

20 Pins Hermetic Header

Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface

Specification of JMC-1718-JH:

Product Name Hermetic Nail Head Multi-pin Header
Impedance NA
Type 20 pins
Rows 2 rows
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range NA
VSWR NA
Withstand Voltage ≥100V

Hermecity

Leak Rate

< 1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ
Operating temperature -65℃~+260℃



Detailed Image(mm) of JMC-1718-JH

Catalog-Glass-to-Metal Hermetic Seals.pdf

Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface 0Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface 1









Introduction



Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products



Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
1-9 pins with 1-3 rows choice
Custom dimensions

Wide range

 Diameter 0.4mm 20 Pins In 2 Rows Hermetic Header With Gold Wire Bonding Surface 3

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8618437926277

Send your inquiry directly to us
