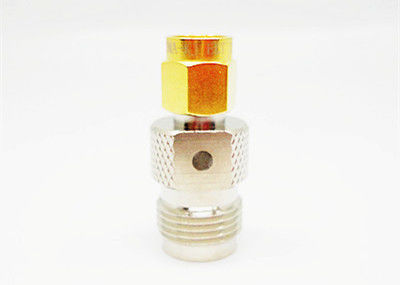

Straight TNC Female To SMA Male RF Adapter 50 Ohm

Straight TNC Female To SMA Male RF Adapter 50 Ohm
Straight TNC Female To SMA Male RF Adapter 50 Ohm Straight TNC Female To SMA Male RF Adapter 50 Ohm Straight TNC Female To SMA Male RF Adapter 50 Ohm Straight TNC Female To SMA Male RF Adapter 50 Ohm Straight TNC Female To SMA Male RF Adapter 50 Ohm

Large Image :  Straight TNC Female To SMA Male RF Adapter 50 Ohm Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS ISO-9001-2015
Model Number: TNC-SMA-KJ
Payment & Shipping Terms:
Minimum Order Quantity: 50
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: T/T, L/C
Supply Ability: 1,000,000pcs per week
Detailed Product Description
Product Name: TNC Female To SMA Male Adapter Impedance: 50Ω
Type: RF Adaptor Application: RF
Gender: Female To Male Durability: 500 Circles
Insulator: PTFE Plating: Gold Plated
High Light:

Female To SMA Male RF Adapter

,

Straight TNC RF Adapter

,

TNC RF Adapter 50 Ohm

RF Straight Coaxial Connector TNC Female to SMA Male Adapter



TNC series RF Electronic connector is a medium and small power connector with threaded connection mechanism developed and produced in accordance with the US military standard MIL-C-39012. The interface size is similar to that of the BNC series. It has the characteristics of strong shock resistance, high reliability, excellent mechanical and electrical performance, and the operating frequency reaches 11GHz.



SMA connectors are small, high frequency RF coaxial connector developed in accordance with MIL-C-39012. It has the advantages of small size, wide frequency band, superior mechanical and electrical performance, high reliability, etc. It is the most widely used RF coaxial connector. Widely used in microwave communication and microwave measurement equipment and other fields. This series of high performance connector developed by our company can reach frequency up to 20 Ghz.


As manufacturer, we can customize TNC SMA connectors and adapters as per your different requirement. Orientations in straight and right angle, with 2-hole or 4-hole flange or threaded bulkhead, hermetic and waterproof types are all available upon request.



Outline Drawing and Picture(mm)

Straight TNC Female To SMA Male RF Adapter 50 Ohm 0

Straight TNC Female To SMA Male RF Adapter 50 Ohm 1Straight TNC Female To SMA Male RF Adapter 50 Ohm 2



Other SMA Male Female to D4/SMP/MCX Male Female RF Adapter

Part Number
Description
TNC-SMA-JK
TNC male to SMA female adapter
K/SMP-KFK3
K female to SMP female adapter
SMA/MCX-KFK
SMA female to MCX female adapter
SMA/SMP-KFK14
SMA female to SMP female adapter

SMA/MCX-KWJ

SMA female to MCX male adapter
SMA/SMP-KFK36G
SMA female to SMP female adapter

1.

Straight TNC Female To SMA Male RF Adapter 50 Ohm 3



2.



Straight TNC Female To SMA Male RF Adapter 50 Ohm 4



3.

Straight TNC Female To SMA Male RF Adapter 50 Ohm 5



4.

Straight TNC Female To SMA Male RF Adapter 50 Ohm 6



5.

Straight TNC Female To SMA Male RF Adapter 50 Ohm 7



6.

Straight TNC Female To SMA Male RF Adapter 50 Ohm 8

Application:

Network Satcom
Computer/LANs Computer/LANs
Mobile communication Instrumentation
Base Station Mobile communication
Outdoor facilities Radar,microwave
Telecommunications Instrumentation
Automotive Jump line join
Basic facility Radio, TV aerial system



Workshop & Exibition

Straight TNC Female To SMA Male RF Adapter 50 Ohm 9

NOTE:
We have over 10,000 types of RF Adapters, if the connector you are using is not found, please contact us with your detai
ls.
