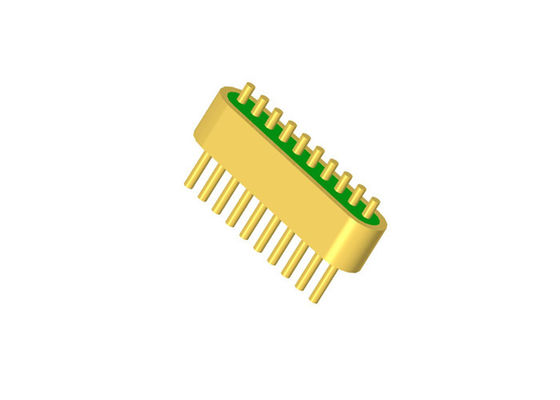

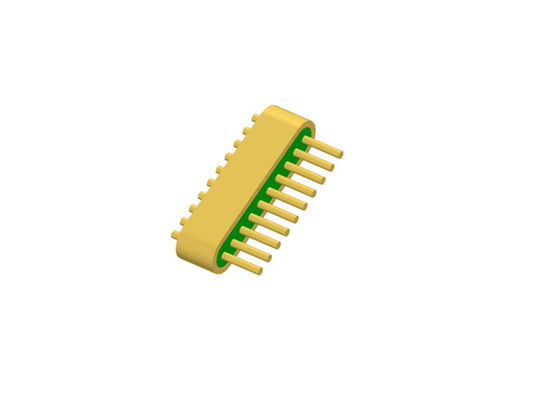

10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip

10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip
10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip 10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip

Large Image :  10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT
Certification: ROHS ISO-9001-2015
Model Number: JMC-1988-JH
Payment & Shipping Terms:
Minimum Order Quantity: 200 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: T/T, Western Union, L/C
Supply Ability: 30,000,000 pcs per year
Detailed Product Description
Plating: Gold Plated Pin: Multi-pin
Pin Number: 10 Pins Pin Material: Kovar 4J29
Glass Material: 7052,7070, DM308 Hermecity: <1.01325 X 10E-08 Std.cc/s
Certificate: ROHS ISO-9001-2015 Package: Glass To Metal Seals
Brand Name: ELT(Elite) ODM: Can Be Customized According To Your Requirement
Highlight:

Hermetic DC Multi Pin Header

,

10 Pin DC Multi Pin Header

,

Hermetic DC pin header connector

10-Pin Hermetic DC Multi-pin Header Gold Wire Bonding Surface with Straight Cut Tip

Specification of JMC-1988-JH:

Product Name Hermetic Multi-pin Header
Impedance NA
Type 10 pins
Rows 1 row
Color Gold plated
Housing and pin material Kovar 4J29
Glass material
Glass Color
7050 or 7070 type or DM308
Green or White
Freqecncy Range NA
VSWR NA
Withstand Voltage ≥100V

Hermecity

Leak Rate

< 1.01325 X 10-3 Pa*cm3/s
< 1X 10-9 mbar*l/s
< 1 x 10-9 ccHe/sec @ 1 atm
Insulation Resistance ≥2000MΩ
Operating temperature -65℃~+260℃



Detailed Image(mm) of JMC-1988-JH

Catalog-Glass-to-Metal Hermetic Seals.pdf

10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip 0      10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip 1



Introduction



Hermetic Glass to Metal Seals RF/DC Feedthroughs /Multi-pin Headers /Connector is also called Glass insulator. They are mainly used to transmit microwave signals, power signals and control signals between modules and modules, modules and components with gas sealing requirements. They are one of the most critical components in sealing components.



The glass with low dielectric constant and low dielectric loss is used as insulating and supporting material. The housing and conductor is made of Kovar alloy that sintered under high temperature, and the surface is gold plated. The center conductor has a variety of termination styles such as gold wire bonding, soldering and mating etc. Glass insulators are small, lightweight, hermetic, high reliable and have been widespread in electronics manufacturing industries in recent years.

Hermetic Seal Solder Contact 6-pin Feedthroughs Connector

Features:

-Small size

-lightweight

-Hermetic

-Stable quality and high reliability

-Inner conductor: Gold wire bonding, soldering and mating method for choice


Application:

Wide application range of electronics packages, electronics countermeasures, satellites, missiles, radar and other in military, avionics, aerospace and automotive filed. It can be used with SMA, millimeter wave products.



Advantages:
-Military Grade with 1.27um gold plated
-Strict tolerance control
-Standard and custom design for choice.
-High cost-effective products and services
-Large stocks for standard sizes
-Fast delivery for custom products



Product List:

50Ω RF Single-pin JM Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Standard Series Soldering Mating and Bonding choice
50Ω RF Single-pin JM Non-Standard Series Soldering Mating and Bonding choice
DC Single-pin JK Series Soldering and Bonding choice
DC Single-pin JK Standard Series Soldering and Bonding choice
DC Single-pin JK Non-Standard Series Soldering and Nail Head Bonding choice
Multi-pin Header JMC Series
1-9 pins with 1-3 rows choice
Custom dimensions

Wide range

 10 Pin Hermetic DC Multi Pin Header Gold Wire Bonding Surface With Straight Cut Tip 3

NOTE:
We have over 100,000 types of Hermetic Glass To Metal Seal Connectors, if the connector you are using is not found, please contact us with your details.

Contact Details
Xi'an Elite Electronic Industry Co., Ltd.

Contact Person: Elite

Tel: +8613609167652

Send your inquiry directly to us
