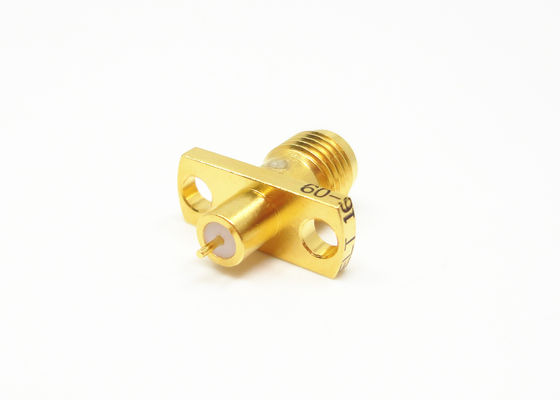

2 Holes Flange Mount Straight 50 Ohm SMA Female Connector

Large Image : 2 Holes Flange Mount Straight 50 Ohm SMA Female Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	CE ROHS
Model Number:	SMA-KFD768

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 3 weeks
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMA RF Adapter	Plating:	Gold Plated
Impedance:	50Ω	Frequency Range:	DC~18GHz
Durability:	500 Cycles	Application:	RF, Satcom /antenna/Audio
Contacts:	Beryllium Bronze	Certificate:	ROHS, ISO-9001-2015
Torque:	0.79 ~ 1.13 N.m	Voltage Rating:	335 VRMS
High Light:	50 Ohm SMA Female Connector , 2 Holes SMA Female Connector , 50 Ohm sma female jack

2 Holes Flange Mount 50 Ohm Straight SMA Female Connector

High Performance SMA RF Connectors:

SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead or 4 hole panel configurations.
SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required.
SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc.
SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz).

Product Display of SMA Connector:

2 Holes Flange Mount Straight 50 Ohm SMA Female Connector 0

Our Advantange:

Qualified components supplier of China Spacecraft Shenzhou 9
18+ years experience on RF&Microwave Components
Rich cooperation experience with national high tech projects
Military and commercial grade components for choice
Strict quality (QA Report),ISO9001,ROHS,CE,UL
Factory area 35,000 sq.m with almost 1,000 experience staff
500+ national patents with 15 production lines
Annual output value above US$300 million
50+ series products with 100,000 types
Short delivery and competitive price
Custom-made(ODM) orders are welcomed

*Customization advantages Reliable performance Perfect production management system(ISO9001,ISO14001) we have experience about RF components more than ten years Experienced R&D staff. All Goods will be tested before shipping OEM/ODM service available.

Electrical Characteristics:

Impedance	50Ω
Frequency Range	DC~18GHz
Rated Voltage	335VRMS*
Dielectrics Voltage-resistance	1000VRMS*
Insulation Resistance	≥5000MΩ
Center Resistance	Center Conductor	≤3.0mΩ
	Outer Conductor	≤2.0mΩ
VSWR	≤1.3

Material & Mechanical Characteristics:

Center Conductor	Male	Brass Gold plated
	Female	Sn-P Bronze Gold plated
Elastic Contact		Beryllium bronze Nickel plated
Shell and other Metal Parts		Brass Nickel plated
		Stainless Passivation
Crimping Sleeve		Brass Nickel plated
Tightening torque of connection		0.79－1.13N .m
Durability		500 cycles
Sealing Ring		Silicone Rubber
Insulators		PTFE
