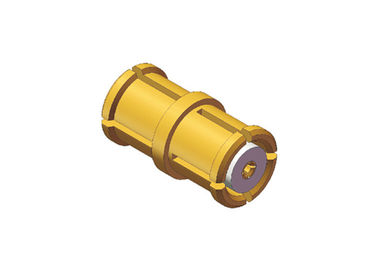

Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm

Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm

Large Image :  Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT(Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMP-KK
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: L/C, T/T, Western Union, Credit Card
Supply Ability: 300,000,000 pcs per year
Detailed Product Description
Product Name: SMP Female To SMP Female RF Adapter Body Material: Brass
Impedance: 50Ohm Color: Gold Plated
Gender: Female To Female Body Style: Straight
Type: SMP Female RF Adapter Mount Method: Blind Mate
High Light:

coaxial cable adapter

,

rf cable adapters

Straight SMP Female to SMP Female RF Adapter with Length 6.45mm
SMP RF Connector Introduction
SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc.
Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking).
Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connectors.
Apply for the install situation with the requirement of high reliability modular intensive.


General Specification for SMP Connector Adapter
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS(at sea level)
Dielectrics Voltage-resistance
500VRMS(at sea leavel)
Insulation Resistance
≥2000MΩ

Contact Resistance
Outer conductor
normal≤2.5mΩ, hermetically sealed ≤4mΩ
Center conductor
normal≤6mΩ,    hermetically sealed ≤26mΩ
Frequency RangeDC~18GHz18~26.5GHz26.5~40GHz
VSWR for straight connector
≤1.25
≤1.3≤1.5
VSWR for right angel connector≤1.3
VSWR for adapter≤1.2≤1.3≤1.5
Center ConductorMale
Sn-P bronze
gold plated
Female
beryllium bronze
gold plated
Elastic Contact
beryllium bronze
gold plated
Shell and other Metal Parts
gold plated brass, passivated stainless steel
Insulators
glass sintering/PTFE/PEI
Leakage Rate for
hermetically sealed connector
1.01325×10-3 Pa·cm3 /s

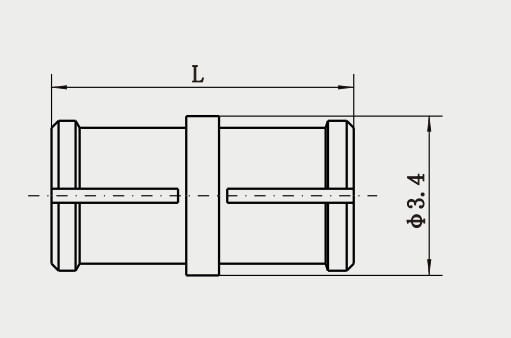

Outline Drawing of
SMP Female to SMP Female RF Adapter
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 0

Model No.L(mm)
SMP-KKL=6.45, SMP female to female rf adapter
SMP-KK12L=5.8, SMP female to female rf adapter
SMP-KK88L=6.2, SMP female to female rf adapter
SMP-KK173L=6.1, SMP female to female rf adapter
SMP-KK174L=5.8, SMP female to female rf adapter
SMP-KK180L=12.3, SMP female to female rf adapter
SMP-KK182L=8.1, SMP female to female rf adapter
SMP-KK202L=5.9, SMP female to female rf adapter


Related SMP female to female Adapters
1.
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 1

Model No.Description
SMP-KWFKSMP female to female rf adapter, right angle, 2 holes flange.


2.
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 2

Model No.Description
SMP-KK72SMP female to female rf adapter


3.
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 3

Model No.L(mm)
SMP-KK5916Compression Length:15mm, right end mated with smooth bore only.
SMP-KK62T13Compression Length:12mm, right end mated with smooth bore only.
SMP-KK62T-Y113Compression Length:12mm, right end mated with smooth bore only.
192H Salt Fog Resistance
SMP-KK190T12.7Compression Length:11.9mm, right end mated with smooth bore only.


4.
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 4

Model No.L(mm)
SMP-KK99L=9.6,   SMP female to female rf adapter
SMP-KK166L=10.2, SMP female to female rf adapter
SMP-KK175L=6.7,   SMP female to female rf adapter
SMP-KK176L=7.1,   SMP female to female rf adapter
SMP-KK177L=7.4,   SMP female to female rf adapter
SMP-KK178L=8.1,   SMP female to female rf adapter
SMP-KK188L=10,    SMP female to female rf adapter
SMP-KK189L=9.7,   SMP female to female rf adapter
SMP-KK192L=9,      SMP female to female rf adapter
SMP-KK239L=9.9,   SMP female to female rf adapter
SMP-KK249L=6.7,   SMP female to female rf adapter


5.
Brass RF Connector Adapter Straight SMP Female to SMP Female with Length 6.45mm 5

Model No.Description
SMP-KK96

L=17.35,  SMP female to female rf adapter

SMP-KK97L=19.6,    SMP female to female rf adapter
SMP-KK98L=11,       SMP female to female rf adapter


NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,
please contact us for full catologs. Custom dimensions is accepted.
