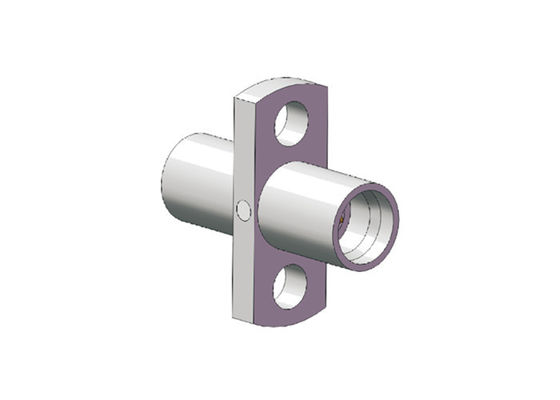

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

China SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume supplier
SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume supplier

Large Image :  SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Product Details:

Place of Origin: China
Brand Name: ELT(Elite)
Certification: ROHS ISO-9001-2015
Model Number: SMP-JFJ2G-LS

Payment & Shipping Terms:

Minimum Order Quantity: 50 pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: Within 3 Weeks
Payment Terms: L/C, T/T, Western Union, Credit Card
Supply Ability: 300,000,000 pcs per year
Contact Now
Detailed Product Description
Product Name: SMP Adapter Male To Male Impedance: 50 Ohm
Body Material: Stainless Steel Color: Passivated
Gender: Male To Male Interface: Limited Detent, Smooth Bore
Type: SMP Adapter Male Mount: 2 Holes Flange Mount

Stainless Steel SMP Male To SMP Male RF Adapter with 2-hole Flange Mount



SMP RF Connector Introduction

SMP is a miniature push-on RF coaxial connector adapter, which has the characters of small volume, light weight, excellent seismic performance, and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form with full detent, limited detent and smooth bore (including with braking). Various interface forms can satisfy the required axial or radial movement of blind mating in the couple usage of broad to broad connec tors. Apply for the install situation with the requirement of high reliability modular intensive.



General Specification for SMP Connector Adapter
Impedance
50Ω
Frequency Range
DC~40GHz
Rated Voltage
170VRMS(at sea level)
Dielectrics Voltage-resistance
500VRMS(at sea leavel)
Insulation Resistance
≥2000MΩ

Contact Resistance
Outer conductor
normal≤2.5mΩ, hermetically sealed ≤4mΩ
Center conductor
normal≤6mΩ, hermetically sealed ≤26mΩ
Frequency Range DC~18GHz 18~26.5GHz 26.5~40GHz
VSWR for straight connector
≤1.25
≤1.3 ≤1.5
VSWR for right angel connector ≤1.3
VSWR for adapter ≤1.2 ≤1.3 ≤1.5
Center Conductor Male
Sn-P bronze
gold plated
Female
beryllium bronze
gold plated
Elastic Contact
beryllium bronze
gold plated
Shell and other Metal Parts
gold plated brass, passivated stainless steel
Insulators
glass sintering/PTFE/PEI
Leakage Rate for
hermetically sealed connector
1.01325×10-3 Pa·cm3 /s

Unit: mm



Outline Drawing of

Stainless Steel SMP Male to Male RF Adapter



SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JFJ2G-LS

SMP male to male adapter, 2-hole flange mount, stainless steel,

L stand for limited detent, S for smooth bore.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small VolumeSMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume



Related SMP Male Female Adapters

1.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP(M)-JYJ1 SMP male to male adapter, hermetically sealed, both sides are limited detent.



2.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP(M)-JYJ2-S SMP male to male adapter, hermetically sealed, both sides are smooth bore.
SMP(M)-JYJ2-FS SMP male to male adapter, hermetically sealed, left side is smooth bore, right side is full detent.



3.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JFJG

SMP male to male adapter, 2-hole flange mount, stainless steel,

both sides are limited detent.



4.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JFJ8-LC

SMP male to male adapter, 2-hole flange mount,

L stand for limited detent, C for catchers mitt.



5.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JYJ2G

SMP male to male adapter,bulkhead mount, stainless steel,

both sides are limited detent.



6.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JJG-LS

SMP male to male adapter, 2-hole flange mount, stainless steel,

L stand for limited detent, S for smooth bore.



7.

SMP Male To SMP Male RF Adapter With 2 Hole Flange Mount Small Volume

Model No. Description
SMP-JWFK1X2 SMP male to female adapter, right angle, two position, 4-hole Flange



NOTE:
We have over 1,000 types of SMP female male adapters for choice, if the product you are using is not found,

please contact us for full catologs. Custom dimensions is accepted.
