40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector

I'm Online Chat Now
Certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
China Xi'an Elite Electronic Industry Co., Ltd. certification
Product was exactly as expected and of high quality. Service was excellent. Will definitely order from again.

—— Gregory,USA

Understood my requirements and sought the right parts.

—— Ian, New Zealand

It has been a great pleasure dealing with you and thank you for your help and suggestion. Hope that there will be more copperation in the near future.

—— Terence, Singapore

The SMP connectors are high quality, the leak rate can reach 1*10^-9 mbar*l/s. A great deal with such an economic price.

—— Jonh,United States

Professional Seller

—— Abdu,Saudi Arabia

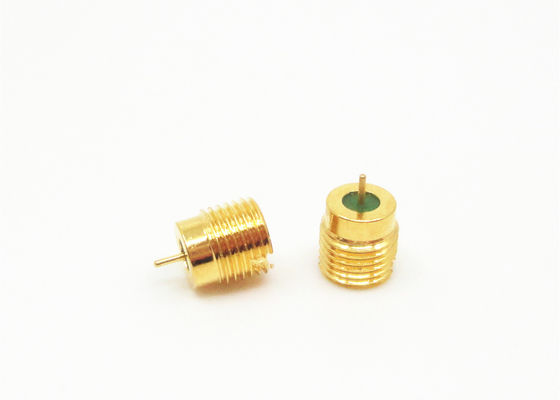

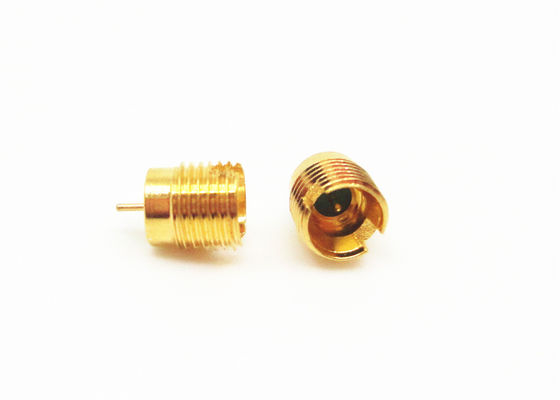

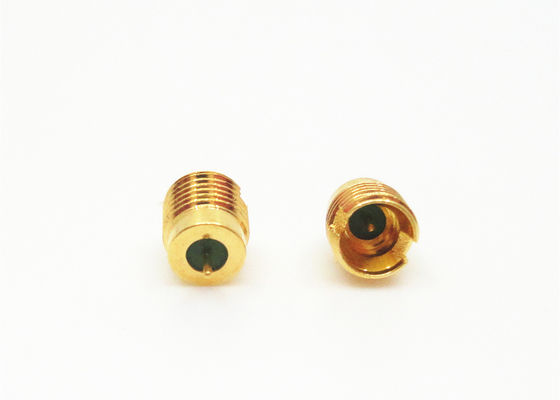

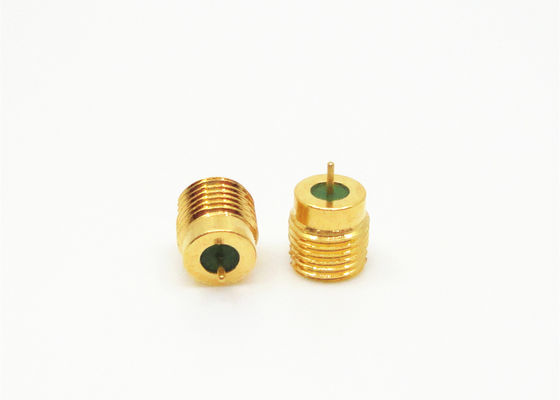

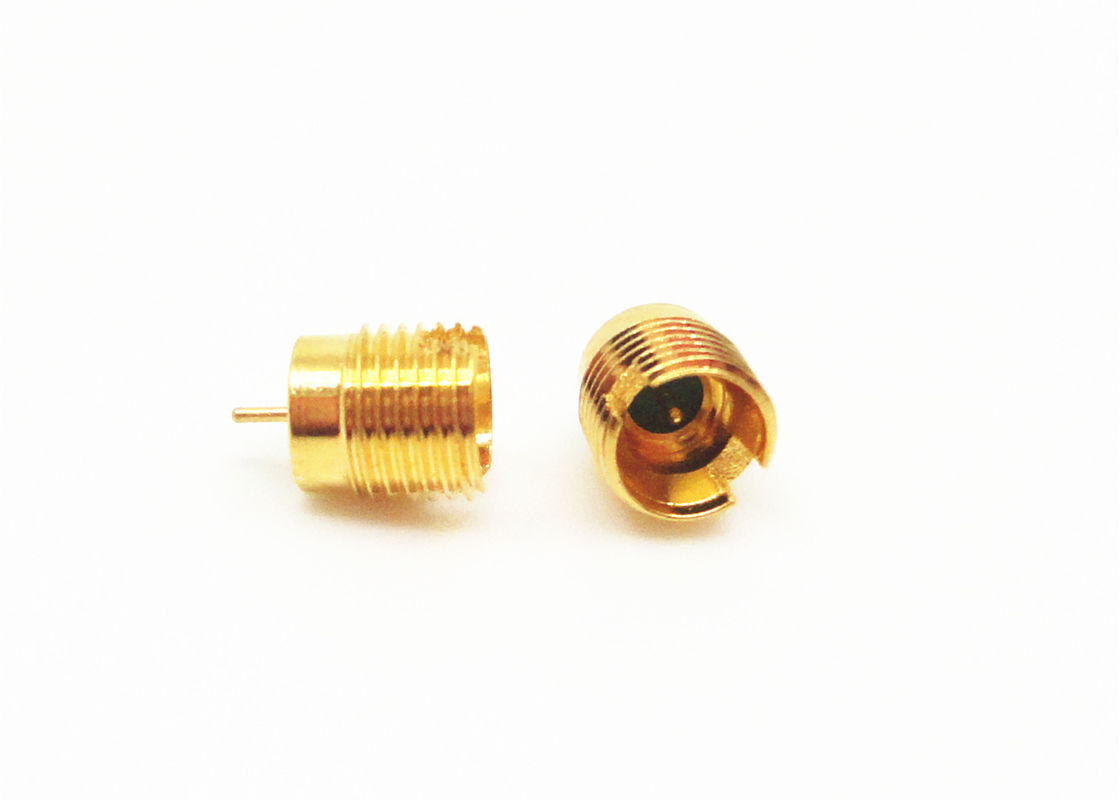

40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector

40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector
40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector

Large Image :  40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: ROHS
Model Number: SSMP(M)-JYD38
Payment & Shipping Terms:
Minimum Order Quantity: 200pcs
Price: Negotiable
Packaging Details: Standard Export Carton
Delivery Time: within 3 weeks
Payment Terms: Western Union, L/C, T/T
Supply Ability: 1,000,000pcs per month
Detailed Product Description
Product Mame: SSMP Hermetically Sealed Male Connector Gender: Male
Boday Material: Kovar 4j29 Plating: Gold Plated
Impedance: 50Ω Frequency Range: DC~40GHz
Other Name: SMPM Connector, Mini SMP Connector Hermecity: <1.01325 X 10E-08 Std.cc/s
High Light:

smpm coaxial connector

,

small coax connectors

40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector

Mini SMP connector is also called SMPM, SSMP connector. It's a miniature push-on RF coaxial connector, which have the characters of small volume (compared with SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors ,for the situation of modular intensive mounting, and the plug has two interface form with full detent and smooth bore.



Features:



1. This type SMPM male connector can offered as full-detent or smooth bore designs for your preference of separation forces.

2. The size of SMPM is 35% smaller than the SMP design.

3. It is widely used in telecommunication systems

4. SMPM (SSMP) is a sub-miniature, push-on style micro-interfaces connector.

5. This type RF connector with wide frequency range up to 50 GHz

6. Cable mount versions for both flexible and semi-rigid cable Materials



Application:



* Aerospace

* Board-to-board interconnect

* Broadband

* Antennas

* Military

* Instrumentation



40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 0




Specification:

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~50GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Outer conductor  ≤5mΩ
Center conductor ≤30mΩ
  DC~18GHz 18~26.5GHz 26.5~40GHz 40~50GHz
VSWR ≤1.25 ≤1.3 ≤1.4 ≤1.5



Material & Mechanical Characteristics:



Center Conductor:

Male: Sn-P Bronze/Kovar, Gold plated

Female: Beryllium bronze, Gold plated


Elastic Contact: Beryllium bronze Gold plated

Body and other Metal Parts: Brass/Kovar with Gold plated

Insulators: Glass sintering/PTFE/PEI



Product Drawing:



40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 1

                                                       40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 2

Related SMP male connector

1.

Model No. Description Note
SSMP(M)-JHD12-JH SMPM Mini SMP male full limited hermetically sealed connector with bonding surface Interface deepth 1.2mm



2.

Model No. Description Note
SSMP(M)-JHD1 SMPM Mini SMP male full limited hermetically sealed connector with bonding surface Interface deepth 1.3mm
SSMP(M)-JHD1-S SMPM Mini SMP male smooth bore hermetically sealed connector



3.

Model No. Description Note
SSMP(M)-JHD42-S SMPM Mini SMP male smooth bore hermetically sealed connector Interface deepth 1.4mm



4.

Model No. L Description Note
SSMP(M)-JHD13 2.3 SMPM Mini SMP male full limited hermetically sealed connector Interface deepth 1.7mm
SSMP(M)-JHD15 1.85 SMPM Mini SMP male full limited hermetically sealed connector
SSMP(M)-JHD24-S 0.9 SSMP male smooth bore hermetically sealed connector
SSMP(M)-JHD32 6 SMPM Mini SMP male full limited hermetically sealed connector
SSMP(M)-JHD43 1.7 SMPM Mini SMP male full limited hermetically sealed connector
SSMP(M)-JHD88-JH 1 SMPM Mini SMP male full limited hermetically sealed connector with bonding surface



5.



Model No. Description Note
SSMP(M)-JHD36 SMPM Mini SMP male full limited hermetically sealed connector Interface deepth 2.11mm





Certificate:

40 GHz SSMP Hermetically Sealed Male Plug SMPM RF Connector Mini SMP Thread-in Connector 3





NOTE:

We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
