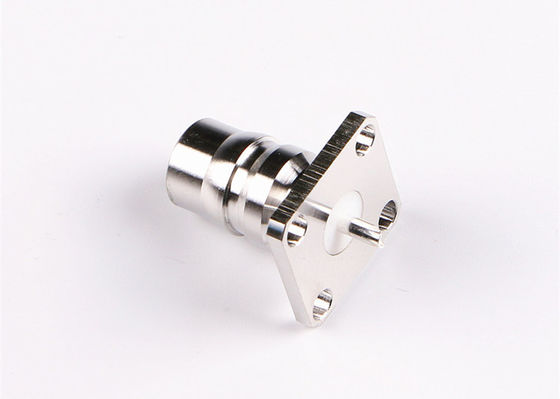

Male Plug SMB with Four Hole Flange PCB Mount RG174 Straight RF Coaxial Connector
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SBMA RF Conector | Plating: | Nickel / Gold Plated |
|---|---|---|---|
| Durability: | 500 Cycles | Contact Material: | Brass, BeCu |
| Material: | Brass | Design Standard:: | IEC 1169-33 |
| Type: | Straight | Gender: | Male |
| Highlight: | miniature rf connectors,rf cable connector |
||
Male Plug SMB with Four Hole Flange PCB Mount RG174 Straight RF Coaxial Connector
SMB series is a kinds of a miniature push-on insertion stop RF coaxial connector, With characteristics of small volume, light weight, excellent easy use and high reliability etc, suitable for radio equipment and high-frequency circuits of electronic equipment. They use a snap-on mating to reduce installation time. Various plating options In nickel, gold, and tin lead. Selective plating provides corrosion resistance finish and good solder ability characteristics.
Specification
| Electrical Characteristics | ||
| Impedance | 50 Ohm | |
| Frequency Range | DC~4GHz | |
| Rated Voltage | 250 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 750VRMS (Maximum sea-level) | |
| Insulation Resistance | >=5000MOhm | |
| Contact Resistance | Outer conductor | <=6mOhm |
| Center conductor | <=1.5 mOhm | |
| VSMR | <=1.3 | |
| Insertion Loss | ≤0.30dB | |
Product Detail
| Material & Mechanical Characteristics | |||
| Center Conductor | Male/Plug | Brass | Gold plated |
| Female/Socket | Sn-P bronze | Gold plated | |
| Resilience Contact | Beryllium bronze | Nickel Plated | |
| Shell / Housing | Brass,stainless steel | Nickel Plated | |
| Insulators | PTFE | ||
| Sealing Ring | Silicone Rubber | ||
| Durability | 500 cycles | ||
| RoHS Compliant | Yes |
| Mating Cycles | 500Cycles |
| Contact Retention | 10N min |
| Cable Retention | 100N min |
| Mating Force | 0.6N max |
| Un-Coupling Force | 0.6 N max |
Environmental Specification:
| Operating Temperature | -65 to +165Deg C |
| IP Rating ( Mated ) | IP64 |
Features:
- Low cost combined with high quality.
- Broadband performance with low reflection from DC to 18 GHz.
- 50 Ohm impedance
- Accommodates a wide range of miniature RG flexible semi-rigid coaxial cables
- BNC connectors are available in straight or right angle versions, as well as, bulkhead, 2 hole panel, 4 hole panel or mountless options.
- Available for affixement to industry standard cable and as a printed circuit board device
- Provide repeatable performance
Application:
* Broadband
* Instrumentation
* Antennas
* Telecom
* Computers
* Broadcast
* Video systems
* Automotive
* Mil/Aero
* Telecommunications
* Wireless industries
* Measurement equipment
NOTE:
We have over 10,000 types of interconnect products((BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.),), if the connector you are using is not found, please contact us with your details.
