Product Details:
Payment & Shipping Terms:
|

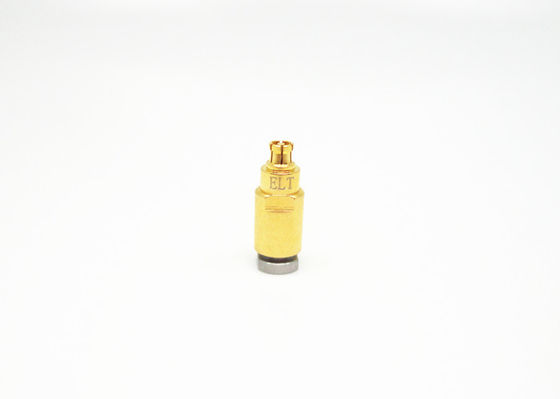

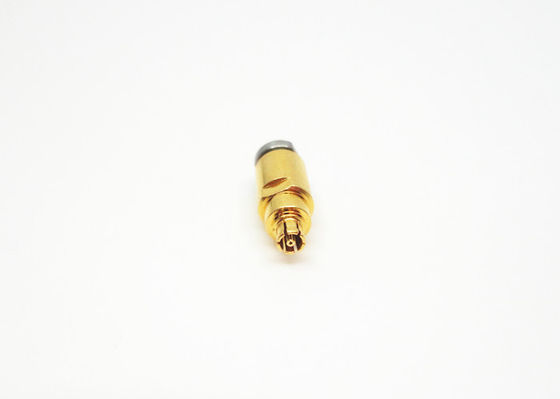

| Product Name: | SSMP Connector | Gender: | Female |
|---|---|---|---|
| Material: | Brass | Plating: | Gold Plated/ Nickel Plated |
| Impedance: | 50Ω | Frequency Range: | DC~50GHz |
| Rated Voltage: | 170VRMS* | Model: | SSMP-K506 |
| Highlight: | MF108A Push On RF Connectors,Cable Type SMPM RF Connector,SMPM Push On RF Connectors |
||
SMPM is a miniature push-on RF coaxial connector, which have the characters of small volume(compared with Mini SMP), light weight, wide working broadband,etc. Apply for the couple usage of board to board connectors for the situation of modular intensive mounting and the plug has two interface form with full detent and unthreaded hole.
| Electrical Characteristics | |||||
| Impedance | 50Ω | ||||
| Frequency Range | DC~50GHz | ||||
| Rated Voltage | 170VRMS* | ||||
| Dielectrics Voltage-resistance | 500VRMS* | ||||
| Insulation Resistance | ≥2000MΩ | ||||
| Center Resistance | Outer conductor | Normal≤3.5mΩ, Sealing≤5mΩ | |||
| Center conductor | Normal≤8mΩ, Sealing≤30mΩ | ||||
| DC~18GHz | 18~26.5GHz | 26.5~40GHz | 40~50GHz | ||
| VSWR | ≤1.25 | ≤1.3 | ≤1.4 | ≤1.5 | |
| Material & Mechanical Characteristics | |||||
| Center Conductor | Male | Sn-P Bronze/Kovar, Gold plated | |||
| Female | Beryllium bronze, Gold plated | ||||
| Elastic Contact | Beryllium bronze Gold plated | ||||
| Shell and other Metal Parts |
Brass/Kovar Gold plated Stainless steel Passivation |
||||
| Insulators | Glass sintering/PTFE/PEI | ||||
| Hermetic Product Leakage Rate | ≤1.01325×10-3Pa·cm3/s | ||||
Application:
* Network
* Satcom
* Computer/LANs
* Base Station
* Automotive
* Jump line join
* Basic facility
* Radio, TV aerial system
* Mobile communication
* Outdoor facilities
* Radar,microwave
* Telecommunications
* Instrumentation
Product Cataloge:
| RF Adapter |
| MCX/MMCX RF Connector |
| Glass-to-metal Hermetic Seals |
| N Type RF Connector |
| Microwave Rotary Joints |
| RF Cable Assemblies |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| J30J Series Connector |
| TNC RF Connector |
| Waveguide to Coaxial Adapter |
| BNC RF Connector |
NOTE:
We have over 10,000 types of SMPM Connector, if the connector you are using is not found, please contact us with your details.
