| Product Name: | SMP RF Coaxial Conector | Plating: | Nickel Plated |
|---|---|---|---|
| Impedance: | 50Ω | Certificate: | CE ROHS |
| Durability: | 500 Cycles | Item: | SMP Male Connector |
| Mount Method: | 2 Holes Flanges | Model: | SMP-JF506G-6 |
| High Light: | mini smp connector,smp coaxial connector |
||

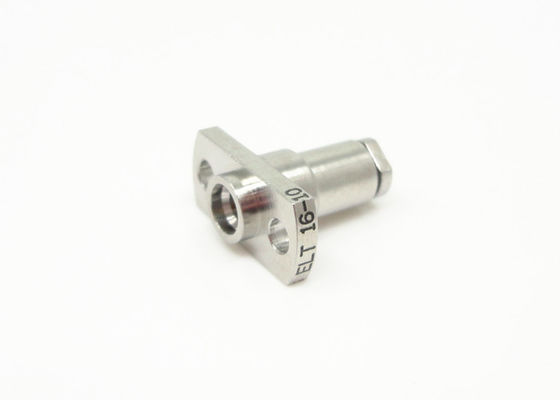

Full Detent 2 Holes Flange Mount Nickel Plated Male Straight SMP RF Connector
SMP is a subminiature push-on(snap coupling) RF coaxial connector, which has the characters of small volume, light weight, excellent seismic performance and widely working broadband,etc. Operating frequency up to 30GHz (our product of high performance SMP connector can reach 40GHz), and the plug has three interface form-full detent, limited detent and smooth bore(including with braking). PCB mount, cable mount and in-series adaptors provide an interconnect solution for board-to-board, blind mate and rack-and-panel applications while maintaining package density. Apply for the install situation with the requirement of high reliability modular intensive.
Specification
| Electrical Characteristics | ||
| Impedance | 50Ω | |
| Frequency Range | DC~40GHz | |
| Rated Voltage | 170VRMS* | |
| Dielectrics Voltage-resistance | 500VRMS* | |
| Insulation Resistance | ≥2000MΩ | |
| Center Resistance | Outer conductor | Normal≤2.5mΩ, Sealing≤4mΩ |
| Center conductor | Normal≤6mΩ, Sealing≤26mΩ | |
| VSWR | ≤1.3 | |
| Material & Mechanical Characteristics | ||
| Center Conductor | Male | Sn-P Bronze, gold plated |
| Female | Beryllium bronze, gold plated | |
| Elastic Contact | Beryllium bronze | Gold plated |
| Shell and other Metal Parts | Brass Stainless steel | Gold plated Passivation |
| Insulators | Glass sintering/PTFE/PEI | |
| Hermetic Product Leakage Rate | 1.01325×10-3Pa·cm3/s | |
Features and Benefits
| DC to 40GHz |
| Sub-miniature |
| Gold plated |
| Compact size |
| Push-on or snap coupling |
| PCB & cable mount connectors |
| Full detent, Limited detent and Smooth bore |
| Male& Female, Straight & Right Angle choice |
| Normal type and hermetic, Flange mount & Thread-In Mount choice |
| Cable mount versions for both flexible and semi-rigid cable Materials |
Applications
- Antennas
- Broadband
- Medical
- Instrumentation
- Board-to-board interconnect
- Phased array antennas
- Telecommunications
Detailed Drawing
| Model Number | SMP-JF506G-6 |
| Cable Type | CXN3506 |
| Note | Limited Detent |
Product Cataloge:
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| MCX/MMCX RF Connector |
| J30J Series Connector |
| Microwave Rotary Joints |
| RF Adapter |
| SMA/SSMA RF Connector |
| SMP/SSMP RF Connector |
| Glass-to-metal Hermetic Seals |
| N Type RF Connector |
| TNC RF Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
NOTE:
We have over 10,000 types of SMP connector, if the connector you are using is not found, please contact us with your details.
