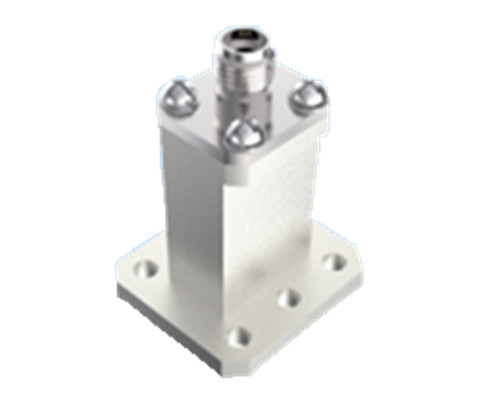

WR51 15-22GHz K2.92mm End Launch Waveguide To Coaxial Adapter For Aerospace

Large Image : WR51 15-22GHz K2.92mm End Launch Waveguide To Coaxial Adapter For Aerospace Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	ZH-H1G-3

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	1,000,000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	2.92 RF Coaxial Waveguide Adapter	Continuous-wave Power:	2W
Frequency:	(187.5/a)GHz~(285.7/a)GHz	Insulation Resistance:	≥5000MΩ
Application:	Communication	Material:	Brass
Rated Storage Temperature Range Temperature:	-55°C~+100°C	Operating Temperature Range:	-65°C~+125°C
Highlight:	2.92 Type Waveguide Adapter , High Performance Waveguide Adapter , BJ180 Waveguide Adapter

WR51 15-22GHz K2.92mm End Launch Waveguide To Coaxial Adapter For Aerospace

^{The coaxial waveguide adapters for spacecraft produced by Elite Electronic are divided into two structural forms, end launch and right angle type, with a frequency range of 5.3GHz to 110GHz.}

^{The rectangular waveguide ports at the waveguide end are WR137(BJ70), WR112(BJ84), WR90(BJ100), WR75(BJ120), WR62(BJ140), WR51(BJ180), WR42(BJ220), WR34(BJ260), WR28(BJ320), WR22(BJ400), WR18(BJ500), WR14(BJ620), WR12(BJ740), WR10(BJ900).}

^{The coaxial end interface interface with SMA series, 2.92 series, 2.4 series, 1.85 series, etc. Each waveguide port product covers the full waveguide bandwidth, and the products have reliable structure, small external dimensions, excellent electrical performance and consistency, and light weight (≤20g), etc. They have been widely used in various types of spacecraft.}

WR51 15-22GHz K2.92mm End Launch Waveguide To Coaxial Adapter For Aerospace 0

Specification:

Note:The specific data of the model are based on the data in the product specification sheet.

Main Parameters
Continuous-wave power		2W
Frequency Range		(187.5/a)GHz~(285.7/a)GHz,a is waveguide port long side dimensions
Operating Temperature Range		-65°C~+125°C
Insulation Resistance		≥5000MΩ
Other
Plating thickness		Thickness of gold plating layer on center contact ≥1.27μm
Plating porosity	Dilute nitric acid	In a transparent container with a specific gravity of 1.316 (temperature 25°C±3°C), 30s
	Concentrated nitric acid	Concentration 68% analytically pure in a container at 25°C±3°C,20min
Rated Storage Temperature Range Temperature		-55°C~+100°C

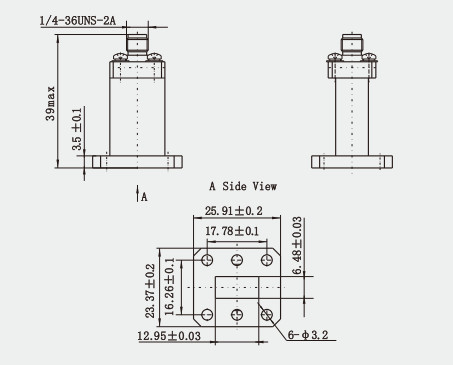

Outline Drawing:(mm)

WR51 15-22GHz K2.92mm End Launch Waveguide To Coaxial Adapter For Aerospace 1

Features:

^{Strong compatibility: Waveguide coaxial converters are compatible with many types of RF cables, including semi-rigid cables and flexible cables, which makes it more widely applicable in practical applications.}
^{Wide range of applications: Waveguide coaxial converters are widely used in antenna systems, microwave communication systems, radar systems, test equipment and other fields to realize the energy conversion between different transmission media.}
^{High-efficiency energy conversion: The design of waveguide coaxial converter is based on the difference of electromagnetic wave propagation characteristics in different transmission media, and realizes high-efficiency energy conversion between waveguide and coaxial line through reasonable structural design and parameter selection.}

^Application:

^{1. Satellite Communication: Waveguide coaxial adapters are also applicable in the field of satellite communication, especially when it is necessary to interconnect the coaxial line of the ground station with the waveguide system on the satellite.}
^{2. Wireless Communications and Industrial Microwave: In wireless communications and industrial microwave applications, waveguide coaxial adapters are used to connect different RF components for efficient signal transmission and distribution.}
^{3.Test and Measurement Systems: In test and measurement systems in the RF microwave field, waveguide coaxial adapters are used to connect test instruments to the device under test to ensure the accuracy of measurement results.}

Cross-references of waveguide Standards

Chinese Standards	International Standards	Frequency Range (GHz)
BJ70	WR137	5.38~8.17
BJ84	WR112	6.57~9.99
BJ100	WR90	8.20~12.5
BJ120	WR75	9.84~15.0
BJ140	WR62	11.9~18.0
BJ180	WR51	14.5~22.0
BJ220	WR42	17.6~26.7
BJ260	WR34	21.7~33.0
BJ320	WR28	26.3~40.0
BJ400	WR22	32.9~50.1
BJ500	WR18	39.2~59.6
BJ620	WR14	49.8~75.8
BJ740	WR12	60.5~91.9
BJ900	WR10	73.8~112
