Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316

Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316

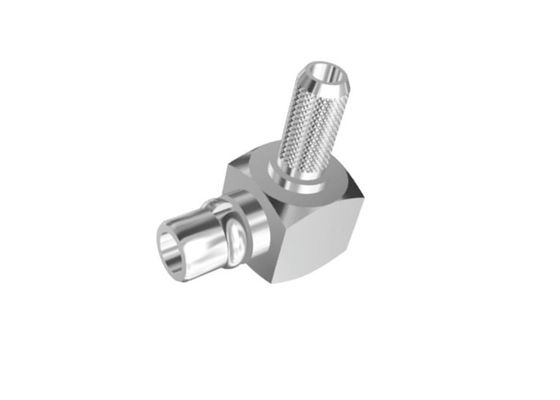

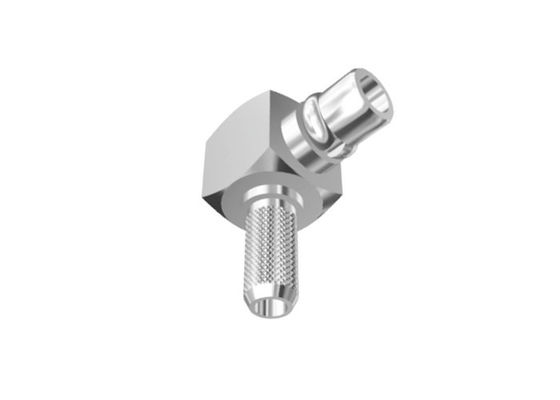

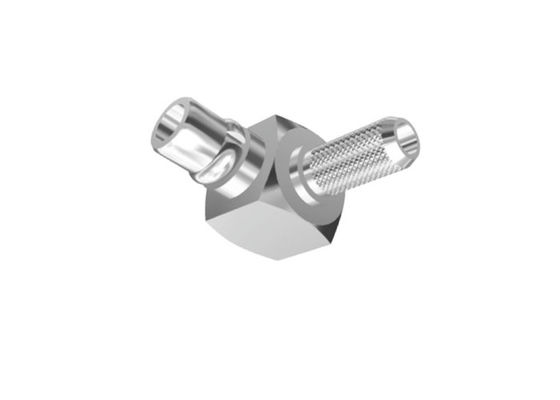

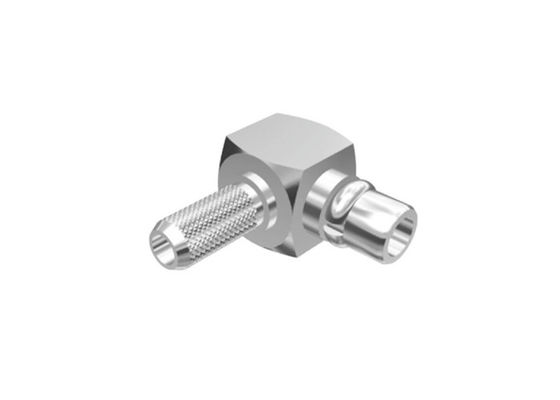

Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316

Large Image :  Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 Get Best Price

Product Details:
Place of Origin: China
Brand Name: ELT (Elite)
Certification: CE ROHS
Model Number: MMCX-JW2
Payment & Shipping Terms:
Minimum Order Quantity: 100
Price: Negotiable
Packaging Details: * Standard Export Carton * According to customers' requirements
Delivery Time: 5-8 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100pcs per week
Detailed Product Description
Product Name: MMCX Series Connector Gender: Male
Plating: Gold Plated/ Nickel Plated Material: Brass
Impedance: 50Ω Durability: 500 Cycles
Certificate: ROHS ISO-9001-2015
High Light:

mmcx jack connector

,

micro miniature rf connectors

MMCX Manufacturer MMCX Male Right Angle RF Coaxial Cable Connector for RG 316


MMCX series is a kinds of micro insertion stop RF coaxial connector which is smaller than MCX, widely used in the small communication devices and network devices that strict requirements for volume and weight.



Specification

Electrical Characteristics
Impedance 50Ω
Frequency Range DC~6GHz
Rated Voltage 170VRMS*
Dielectrics Voltage-resistance 500VRMS*
Insulation Resistance ≥2000MΩ
Center Resistance Center Conductor ≤10mΩ
Outer Conductor ≤5mΩ
VSWR ≤1.3
Material & Mechanical Characteristics
Center Conductor Male Brass Gold plated
Female Beryllium bronze Gold plated
Elastic Contact Beryllium bronze Gold plated
Shell and other Metal Parts Brass Gold plated
Crimping Sleeve Brass Nickel plated
Insulators PTFE
Sealing Ring Silicone Rubber
Durability 500 cycles

Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 0



Detailed Images
Male Right Angle MMCX RF Connector Nickel Plated Plating Design For RG316 1

Application:



* Network

* Satcom

* Computer/LANs

* Computer/LANs

* Mobile communication

* Instrumentation

* Base Station

* Mobile communication

* Outdoor facilities

* Radar,microwave

* Telecommunications

* Instrumentation

* Automotive

* Jump line join

* Basic facility

* Radio, TV aerial system



Product Cataloge:

RF Adapter
Waveguide To Coaxial Adapter
Glass-to-metal Hermetic Seals
J30J Series Connector
Microwave Rotary Joints
RF Cable Assemblies
SMA/SSMA RF Connector
SMP/SSMP RF Connector
MCX/MMCX RF Connector
TNC RF Connector
N Type RF Connector
BNC RF ConnectorMillimeter Wave Connectors(2.4mm, 2.92mm)



NOTE:
We have over 10,000 types of MMCX Connector, if the connector you are using is not found, please contact us with your detai
ls.
