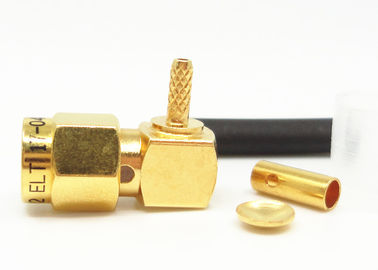

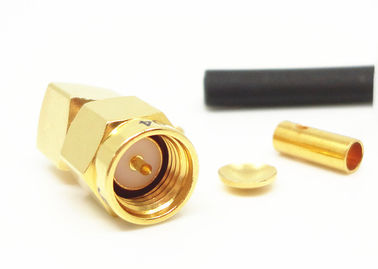

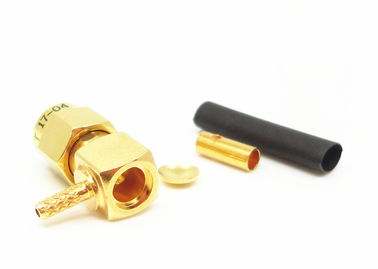

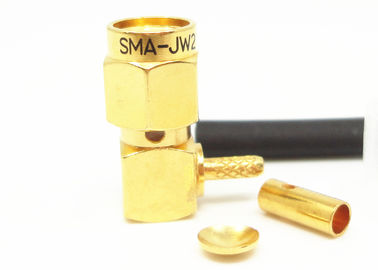

50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178 Up to 3GHz
|
|
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | SMA RF Coaxial Conector | Impedance: | 50Ω |
|---|---|---|---|
| Frequency: | DC~3GHz | Center Conductor: | Copper Alloy, Gold Plated |
| Outer Conductor: | Copper Alloy, Gold Plated | Body Style: | Right Angle |
| Gender: | Male | Insulator: | PTFE |
| Cable Type: | RG178 | Durability: | 500 Cycles |
| Highlight: | sma antenna connector,sma coax connector |
||
50Ohm SMA Male Right Angle RF Coaxial Connector for Cable RG178
- SMA is a kind of mini, high-frequency RF coaxial connector.
- SMA is developed and produced according to MIL-C-39012 with characteristics of small volume, good bandwidth, superior electrical characteristics.
- The high performance connector developed by our company can reach to 20GHz.
- SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.
Specification:
| Impedance | 50Ohm | |
| Frequency Range | DC~3GHz | |
| Rated Voltage | 335 VRMS (Maximum sea-level) | |
| Dielectrics Voltage-resistance | 1000 VRMS (Maximum sea-level) | |
| Insulation Resistance | ≥5000MΩ | |
| Center conductor | Male | Copper Alloy, Gold Plated |
| Female | Copper Alloy, Gold Plated | |
| Shell and other metal parts | Copper Alloy, Gold Plated | |
| Cable sheath | Brass nickle plated | |
| Insulator | PTFE | |
| Seal ring | Silicon rubber | |
Advantages:
- Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP/SMPM, CSMP/SMPS etc.), more than 500
- experienced workers with over 10 production lines
- Specializes in manufacturing RF connector more than 23 years
- Have long and Rich cooperation experience with national project components supply
- With our own factory with 35,000㎡
- Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery
- Competitive price
- Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE
- Monthly average turnover is 10million
- Custom-made (ODM) orders welcome here
- We are committed to providing high-quality products to customers
Outline Dimension of 50Ohm SMA Male Right Angle RF Coaxial Cable Connector:
Mating Cable: RG178
Product Cataloge:
| RF Adapter |
| Microwave Rotary Joints |
| SMP/SSMP RF Connector |
| TNC RF Connector |
| N Type RF Connector |
| MCX/MMCX RF Connector |
| SMA/SSMA RF Connector |
| RF Cable Assemblies |
| Waveguide to Coaxial Adapter |
| Glass-to-metal Hermetic Seals |
| J30J Series Connector |
| BNC RF Connector Millimeter Wave Connectors(2.4mm, 2.92mm) |
Applications:
- Microwave Systems
- Telecommunications
- 5G Solutions
- Measurement Systems
- Mobile Telephone WiFi Antennas Systems
NOTE:
We have over 10,000 types of Connectors, if the connector you are using is not found, please contact us with your details.
