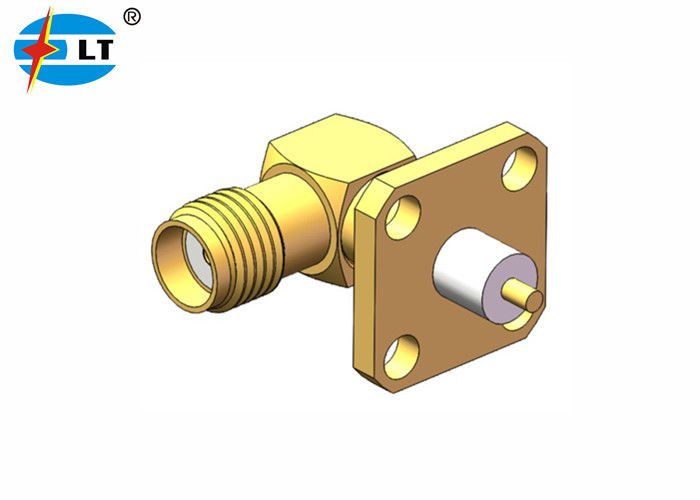

50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector

Large Image : 50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector Get Best Price

Product Details:

Place of Origin:	China
Brand Name:	ELT (Elite)
Certification:	ISO-9001-2015
Model Number:	SMA-KWFD7

Payment & Shipping Terms:

Minimum Order Quantity:	100pcs
Price:	Negotiable
Packaging Details:	Standard Export Carton
Delivery Time:	Within 5-7 workdays(for stocks)
Payment Terms:	T/T, Western Union, L/C
Supply Ability:	10000 Pieces Per Month

Contact Now

Detailed Product Description

Product Name:	SMA RF Coaxial Connector	Plating:	Gold Plated
Gender:	Female	Impedance:	50Ω
Durability:	500 Cycles	Application:	Wireless And Satellite Communication
Frequency Range:	DC～18GHz	Type:	SMA
Highlight:	50Ohm Mini Sma Connector , Gold Plated Mini Sma Connector , 50Ohm SMA Receptacle Connector

50Ohm Gold Plated 4 Holes Flange SMA Receptacle Connector

SMA series is a kind of mini, high-frequency RF coaxial connector, it's developed and produced according to MIL-C-39012. With characteristics of small volume,good bandwidth,superior electrical characteristics. SMA is the most widely used rf coaxial connectors in different fields of microwave communication and microwave measuring device.The high performance connector developed by our company can reach to 20GHz.

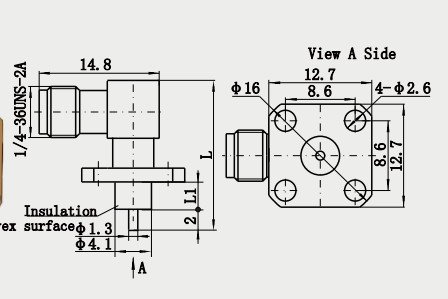

Interface Dimentions:

50Ohm Gold Plated SMA 4 Holes Flange SMA Receptacle Connector 0

Specification of SSMA Rf Connectors:

Note:The specification of the model are based on the data in the product specification sheet.

Electronic and Material Characteristics

Impedance

50Ω

Frequency Range

DC～18GHz

Rated Voltage

335 VRMS (Maximum sea-level)

Dielectrics Voltage-resistance

1000 VRMS (Maximum sea-level)

Insulation Resistance

≥5000MΩ

Center conductor

Male

Brass gold plated

Female

Beryllium Bronze gold plated

Shell and other Metal Parts

Brass gold plated

Stainless steel passivation

Cable sheath

Brass nickel Plated

Insulator

PTFE

O-Ring

Silicon rubber

Durability

500 Cycles

Advantages:

√ Rich selection of connector (BNC,TNC,MCX,MMCX,SMA,SSMA,SMB,SSMB,BMA,SBMA,SMC,SC,SMP,SSMP ect.), more than 500

experienced workers with over 10 production line

√ Specializes in manufacturing RF connector more than 20 years

√ Have long and Rich cooperation experience with national project components supply

√ With our own factory with 35,000㎡

√ Replace Lemo, Molex ,YEONHO ,Tyco ,AMP,KET,JWT,JMT, Cvilux, GTK ect. with short delivery

√ Competitive price

√ Strict quality control (QA Report) ,passed ,ISO9001,ROHS, CE

√ Monthly average turnover is 10 million

√ Custom-made (ODM) orders welcome here

√ We are committed to providing high-quality products to customers

Features:

1. SMA RF connector is high quality and quick combinations by simply screwing two connectors together, with no soldering or crimping required

2. SMA electrical connectors are widely used for microwave, antennas and testing instrumentation etc

3. SMA RF connectors are available in quick connect , push-on or standard interface , straight, 90 degrees versions,as well as bulkhead ,or 4 holes panel configurations

4. SMA RF connector are threaded-coupling RF coaxial connectors with miniature size, vibration-proof and wide frequency range up to 18 GHz (Our SMA RF connectors can be 20 GHz)
