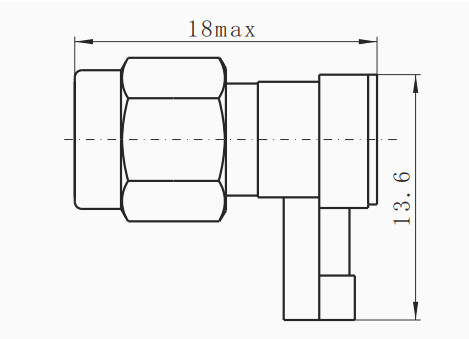

2.92mm(K) Male Right Angle Stainless Steel for 2#Semi-flex mmW Cable Connector Plug
Type K, also known as 2.92mm connector, is a commonly used millimeter wave connector. The operating frequency can reach 40GHz.
With air interface, it can be interchanged with SMA series and 3.5mm connectors. The utility model has the advantages of small volume, light weight, high use frequency, reliable connection, etc.
The utility model has the advantages of small size, light weight, high use frequency, reliable connection, etc.
The 2.92mm connector of Xi'an Elite Electronics is made of male or female with an impedance of 50Ohms. 2.92mm connectors have threads, diaphragms, 2-hole panels, 4-hole panels, or no mounting options. These 2.92mm connector designs include clamp/welding, field replaceable or welding connection methods.
Specification:
| Impedance | 50Ω |
| Frequency Range | DC - 40GHz |
| Voltage Rating | 250 VRMS (Max. Sea Level) |
| Dielectric Withstanding Voltage | 750 VRMS (Max. Sea Level) |
|
Voltage Standing Wave Ratio |
≤ 1.05 + 0.005f |
| Contact Resistance | Center Conductor ≤ 3.0 mΩ |
| Outer Conductor ≤ 2.0 mΩ | |
| Insulation Resistance | ≥ 5000 MΩ |
| Inner Conductor | Male plug: Brass, Gold Plated |
| Female Jack: Beryllium bronze, Gold Plated | |
| Body / Shell / Housing |
Brass, Gold Plated, Stainless Steel, Passivated |
| Insulator | PEI/PLF |
| Gasket | Silicone Rubber |
| Temperature | -55℃ ~ +125℃ |
| Durability | 500 Cycles |
| Torque | 0.79 ~ 1.13 N.m |
Features:
*High performance up to 40GHz
*Low VSWR
*Excellent return loss and insertion loss
*Ruggedized construction for repeatability
*Compitable to mate with SMA, 3.5 mm and other K or 2.92 mm connectors
Application:
* Commercial Communication Systems Interconnect
* Shipboard System
* Airborne Platform
*Radio Station
Related products:
| K-J87G | K male straight stainless steel for 2#Semi-rigid/flex Cable Assembly |
| K-K87G | K female stainless steel for 2# Semi-rigid/flex cable assembly |
