Product Details:
Payment & Shipping Terms:
|
| Product Type: | SMP | Plating: | Gold Plated |
|---|---|---|---|
| Insulator: | PTFE | Body Style: | Right Angle |
| Material: | Brass | Color: | Gold |
| Mount: | Solder Mount For PCB | Life Time: | 500Cycles |
| High Light: | Right Angle Flange RF Connector,SMP Male PCB Mount RF Connector,SMP 2.92mm RF Connector |
||

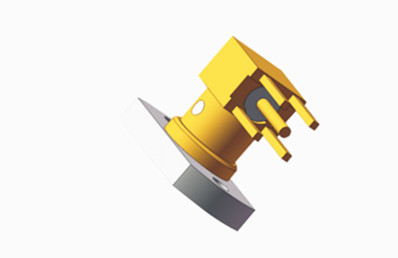

Experience Unmatched Connectivity with SMP Male Right Angle Flange + PCB Mount RF Connector
K-type(2.92mm,SMK) millimeter wave connectors, also called 2.92mm connectors. It's one of the most popular meter wave connectors.The broad frequency range is up to 40GHz. They can be mated with SMA and 3.5mm connectors.
These K-type (2.92mm,SMK) connectors are adopt air interface, which makes them with small in size, light in weight and very reliable in connection, etc.
These high precision 50Ohm coaxial 2.92mm (Female) connectors are designed for general-purpose RF and microwave applications. They are widely used in a variety of test and measurement scenarios, from cellular to satellite communications, ensuring proper equipment and cable interconnection matching. Made from durable stainless steel, these connectors are built to withstand frequent use. They feature an air dielectric with a loss-loss plastic center conductor support.
Features of Experience Unmatched Connectivity with SMP Male Right Angle Flange + PCB Mount RF Connector:
1, compact structure: SMP RF connector is a miniature push-in RF coaxial connector, also known as GPPO/SMPM connector, which is mainly used for dense row connection between RF modules.
2, easy to install: SMP connector is easy to connect, light weight and small size, which makes it very convenient in the installation process. In addition, it provides push-on or snap-on coupling function, which ensures the completion of electrical connection.
3, a variety of interface forms: SMP series RF connectors include a variety of connecting cables straight, curved plugs and sockets, plugs with full escapement, half escapement, optical hole brake and other interface forms.
4, a variety of installation methods: SMP series RF connectors have a variety of structures such as wall mounting, flange mounting and glass sintering.
5, excellent mechanical reliability: full escapement structure of the SMP connector has excellent mechanical reliability, to meet the vibration and shock performance
Application of Experience Unmatched Connectivity with SMP Male Right Angle Flange + PCB Mount RF Connector:
* Telecommunication systems
* Instrumentation
* Satcom
* Computer/LANs
* Telecommunications
* Navigation systems
* Research centres
* Satellite communication
* Missiles and guidance systems
