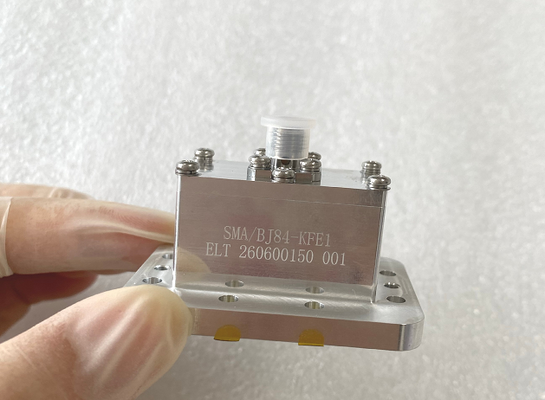

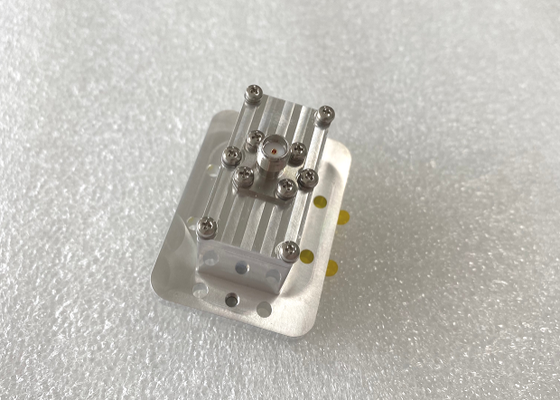

Waveguide to Coaxial Adapter with Waveguide Port WR112 (BJ84）to SMA Female Adapter End Lauch Frequency 6.57GHz~9.99GHz

• Other Waveguide to Coaxial Adapter

We also have other waveguide to coaxial adapter such as waveguide to SMA adapter,  Waveguide to N type Adapter ,  Waveguide to 2.4mm Adapter,  Waveguide to 1.85mm Adapter,  Waveguide to 1.0mm Adapter, Waveguide to 0.8mm Adapter. Please contact us freely if you need other models.

• Cross-references of Waveguide International Standards -WR Series & China BJ Series

• Application

  • 1. Aerospace & Radar Systems

    Waveguide to coaxial adapters serve as critical transition components for radar, electronic warfare and airborne telemetry systems. They bridge waveguide antenna feed networks and coaxial T/R modules, maintaining stable phase consistency for X-band, Ku-band and high-frequency radar operation. Featuring ultra-low VSWR and high signal purity, these waveguide-coaxial transitions ensure precise signal transmission for electronic jamming systems. Ruggedized and right-angle designs also deliver reliable electrical performance under high-vibration flight conditions for aerospace telemetry applications.

    2. Satellite Communication (Satcom)

    In satellite ground stations, waveguide to coaxial adapters connect parabolic waveguide antenna outputs to LNAs and power amplifiers, enabling stable Tx/Rx signal conversion. High-precision waveguide transitions are widely adopted for satellite payload ground testing, simulating space signal transmission to guarantee test accuracy. Compact lightweight structures are also used inside satellite equipment to save space and reduce overall payload weight for inter-satellite communication links.

    3. Test & Measurement

    As standard test fixture components, waveguide-coaxial transitions connect waveguide antennas to vector network analyzers (VNA) for antenna and millimeter-wave testing. High-precision 2.4mm and 2.92mm adapter versions support millimeter-wave band testing up to 110GHz. They are commonly used in anechoic chamber EMC testing and automated test equipment (ATE). Space-saving right-angle waveguide adapters optimize layout for compact test setups and industrial measurement systems.

    4. 5G/6G & Microwave Wireless Communication

    Waveguide to coaxial adapters are essential for 5G and 6G millimeter-wave R&D, supporting base station prototyping, module testing and millimeter-wave signal calibration. They are also applied in point-to-point microwave relay links for long-distance signal coupling, monitoring and microwave signal conversion in wireless backhaul systems.

    5. Industrial, Medical & Scientific Research

    These RF transition components are widely used in industrial microwave heating, drying and power monitoring equipment. In medical microwave systems, they support stable signal transmission for microwave physiotherapy and tumor hyperthermia devices. For large-scale scientific facilities such as particle accelerators and radio telescopes, high-power, low-noise waveguide-coaxial adapters ensure reliable long-term operation of high-precision scientific equipment.
  • Radar Systems: waveguide to coaxial adapter are used to connect the waveguide feed network at the antenna end with the coaxial Transmit/Receive (T/R) modules at the backend. They must guarantee signal phase consistency, especially in high-frequency bands (such as X-band and Ku-band);
  • Electronic Jamming Systems: Used in signal transmit and receive chains, requiring extremely low Voltage Standing Wave Ratio (VSWR) to ensure signal purity;
  • Telemetry Systems: In high-vibration and high-impact flight environments, right-angle or ruggedized transitions provide reliable electrical connections.

• Packing & Shipping

Our Waveguide to coaxial adapters are carefully packaged to ensure maximum protection during transit. Each connector is individually wrapped in anti-static material and placed in a sturdy, cushioned box to prevent any damage from shocks or vibrations.

The packaging is clearly labeled with product information, including part numbers and specifications, to facilitate easy identification and inventory management.
